Wave Electric Pop Top

The Avida Wave is an electric pop top with a low profile, it’s light weight and has a modern design that is easy to store under your carport. No need to search any further, the Avida Wave is perfect for you and your vast adventures exploring Australia.

Discover more

Get the details

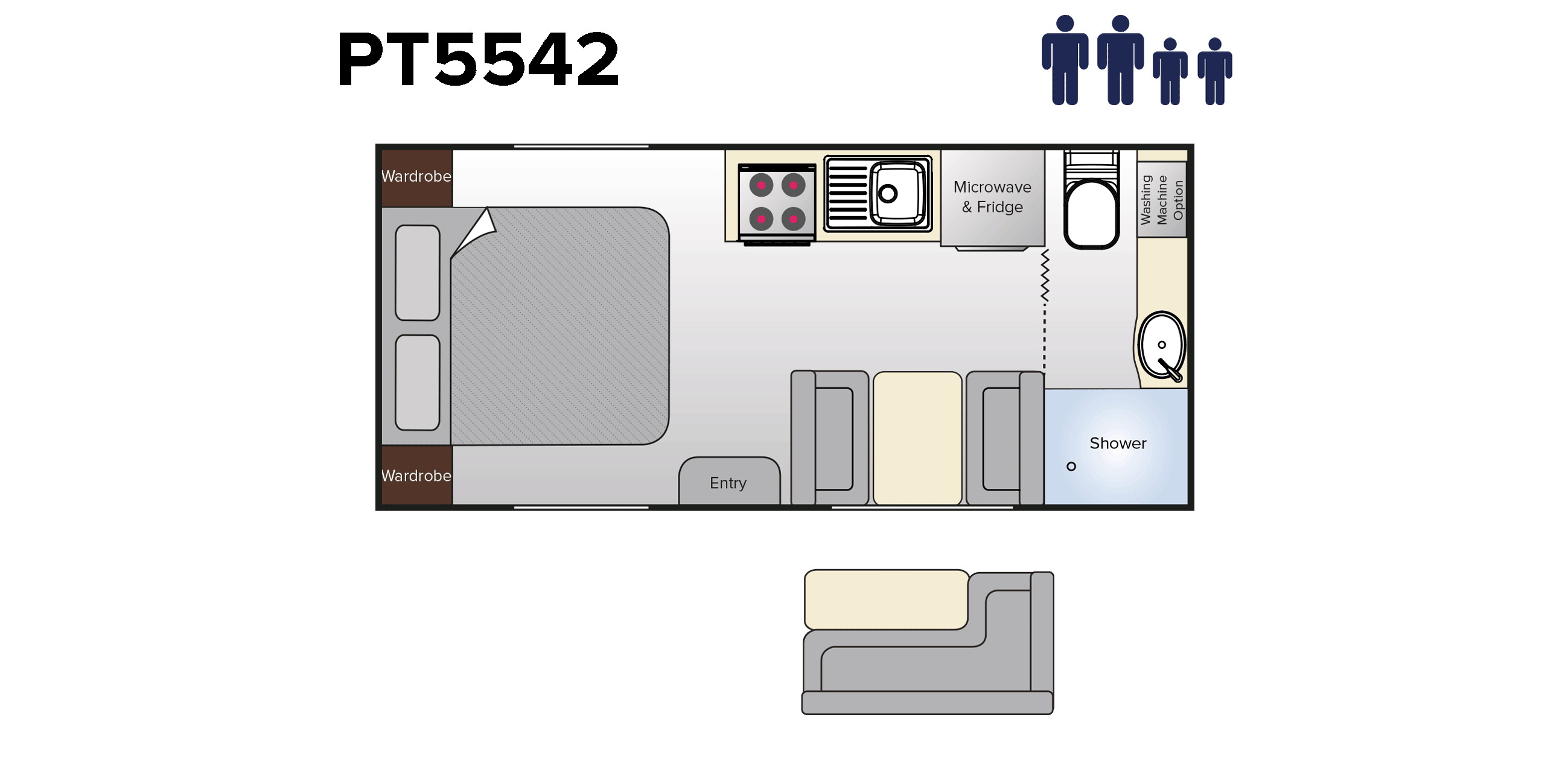

PT5542 Wave Electric Pop Top

Specifications of the PT5542 Wave Electric Pop Top.

Model Travel Length* External Height Ball mass (empty)
Approx*
Tare weight
Approx*
PT5542 – Tourer 7200mm 2795mm 150kg 1750kg

* Note: The Tare and Ball weights in the table above are approximate only for the tourer model. Weights will vary depending on the options fitted at both factory and dealer. To find our more information consult your dealer.

Attribute Value
Exterior Body Length 5570mm
Exterior Width (inc. awning) 2495mm
Interior Height 1635mm
Exterior Height (Pop top up) 3085mm
Axle Quantity Single

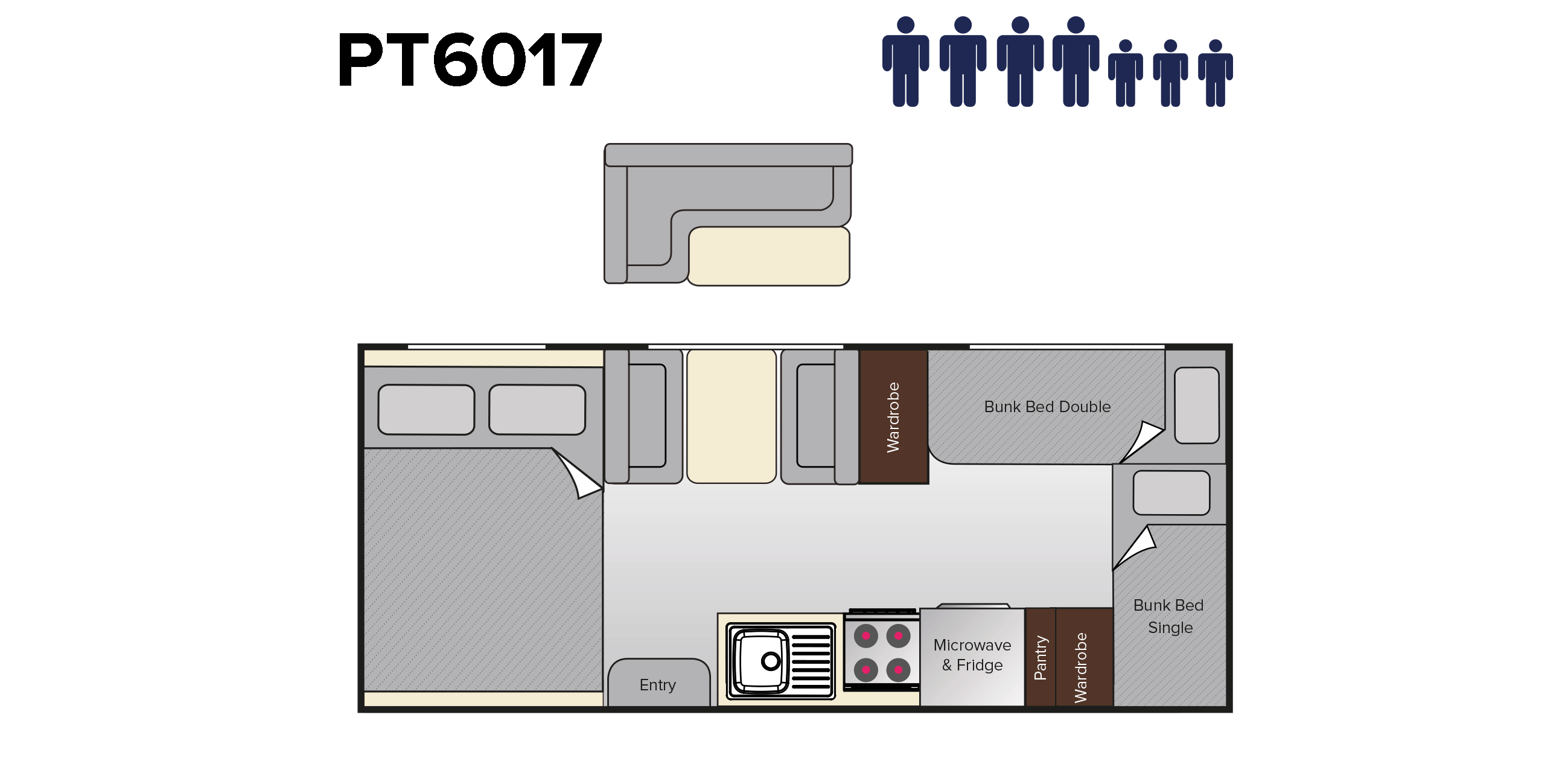

PT6017 Wave Electric Pop Top

Model Travel Length* External Height Ball mass (empty)
Approx*
Tare weight
Approx*
PT6017 – Tourer 7705mm 2795mm 125kg 2020kg

* Note: The Tare and Ball weights in the table above are approximate only for the tourer model. Weights will vary depending on the options fitted at both factory and dealer. To find our more information consult your dealer.

Attribute Value
Exterior Body Length 6075mm
Exterior Width (inc. awning) 2495mm
Exterior Height (pop top up) 3085mm
Interior Height 1635mm
Axle Quantity Tandem

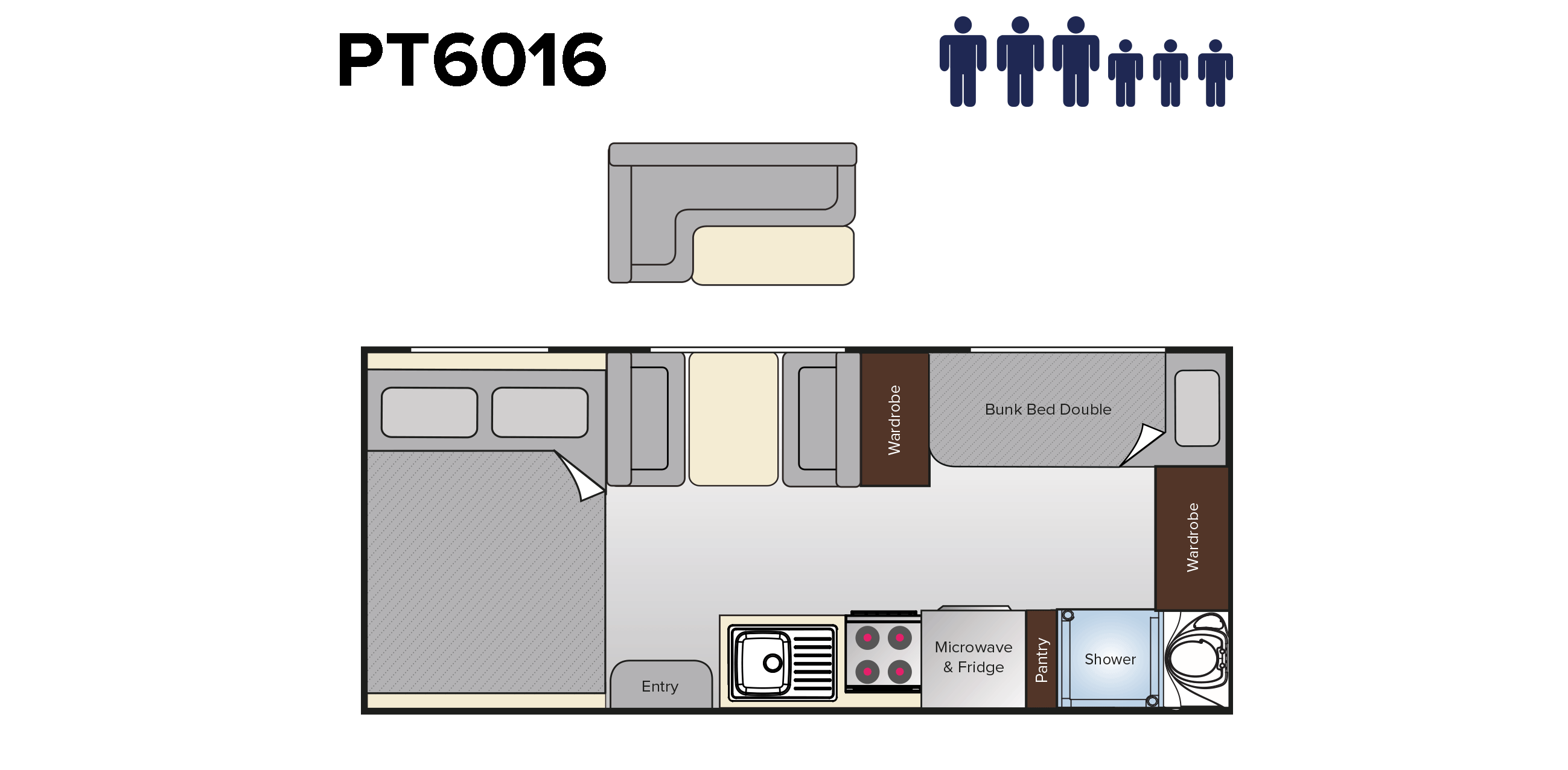

PT6016 Wave Electric Pop Top

Specifications of the PT6016 Wave Electric Pop Top.

Model Travel Length* External Height Ball mass (empty)
Approx*
Tare weight
Approx*
PT6016 – Tourer 7705mm 2795mm 125kg 2195kg

* Note: The Tare and Ball weights in the table above are approximate only for the tourer model. Weights will vary depending on the options fitted at both factory and dealer. To find our more information consult your dealer.

Attribute Value
Exterior Body Length 6075mm
Exterior Width (inc. awning) 2495mm
Interior Height 1635mm
Exterior Height (Pop Top up) 3085mm
Axle Quantity Tandem

Specifications

Lengths

Model Exterior
Body Length
Exterior Width
(inc. awning)
Interior Height Axle Quantity
17 Foot – 55 Series Layouts 5570mm 2495mm 2130mm Single
18 Foot – 60 Series Layouts 6075mm 2495mm 2130mm Tandem

Due to continuous improvement, specifications are subject to change without notice.

Weights & Capacities

Model Travel Length External Travel Height Ball mass (empty)
Approx.*
Tare weight
Approx.*
PT5542 – Tourer 7200mm 2585mm 150kg 1735kg
PT6016 – Tourer 7705mm 2585mm 125kg 1960kg
PT6017 – Tourer 7705mm 2585mm 125kg 2020kg

* Note: The Tare and Ball weights in the table above are approximate only. Weights will vary depending on the options fitted at both factory and dealer. To find out more information consult your dealer.

Features

You can compare the Wave features with up to three other ranges by clicking below

Wave Pop Top Emerald Rock Topaz
Wave Pop Top
green tick = Standard
red cross = Not available
O = Option
* = Select models
 Wave Pop Top Caravan thumb
Tourer
QUALITY INCLUSIONS Wave Pop Top
Air conditioner – 240V roof mounted reverse cycle green tick
Avida’s unique, strong, highly insulated and light weight sandwich panel construction with aluminium underfloor protection green tick
Compliance – Certified weight certificate ex-factory with every vehicle green tick
Compliance – RVMAP industry accredited manufacturer (look for the accreditation key) green tick
Fridge – 190L 2 door automatic energy selection fridge / freezer red cross
Fridge – 150L automatic energy selection fridge/freezer green tick
Front wall – Aerodynamic moulded front green tick
Microwave – Carousel microwave green tick
Oven – Recessed 3 burner LPG stainless steel stove +1 electric cook top with gas griller combo & glass lid for extra bench space and gas oven O
Range hood – Stainless steel with fan & light green tick
Residential soft close drawers red cross
Solar – Solar panels with regulator green tick
Stove – Recessed 3 burner LPG stainless steel stove + 1 electric cook top with gas griller combo & glass lid for extra bench space green tick
TV – with DVD Player, wind up TV antenna with signal booster green tick
Ultra leather upholstery red cross
Washing machine O*
Water – 2 x 120ltr water tanks plumbed independently green tick
Water tank – Dual filling with control to separate your water storage green tick
INTERIOR HIGHLIGHTS Wave Pop Top
Bathroom door – Aluminium red cross
Bathroom door – Concertina red cross
Bathroom with shower, toilet & porcelain sink red cross
Battery – 100A green tick
Battery – Integrated battery charger & power supply green tick
Battery – Integrated display & controller unit for water tank & battery management O
Battery – Additional battery O
Battery – Wireless battery management through app O
Bed – Lift up bed on gas struts for easy lifting with storage under bed green tick
Bed – Queen size 1,520mm width green tick
Cupboards – Modern contemporary super gloss finish with aluminium extrusion in overhead cabinets for strength O
Cupboards – Timber grain with 3D finish (curved in Topaz) with aluminium extrusion in overhead cabinets for strength green tick
Drawers – Metal runners plus large pots & pans storage green tick
Fridge – Compressor fridge O
Handle free overhead cupboards red cross
Heating – Gas heater O
Hot water system – 240V & gas system with 12V electric start green tick
Lighting – 12V LED lighting green tick
Lighting – LED mood lighting throughout O
Mattress – Multilayered memory comfort green tick
Mirror – Large mirror with lights over vanity green tick
Pantry – Slide out pantry green tick asterix
Power – 12V & 240V power systems with 240V external GPO green tick
Roof Hatch – 500mm x 700mm in living room O
Roof hatch in bathroom green tick
Roof hatch with 12V fan in bathroom red cross
Separate tap at sink with water filter O
Shower – Large separate shower with aluminium shower screen door green tick
Shower – Large separate shower with roller shower screen door red cross
Stereo – With AUX & USB ports green tick
Stereo – With bluetooth, AUX & USB ports & external speakers red cross
Storage – Ample storage throughout & under bed green tick
Swivel bracket fitted to lift up TV models red cross
Table – Adjustable & removable swivel dining table red cross
Table – Tri-fold table* O
Table – Wall mounted folding leg table (dinette models) green tick
TV – Additional television with DVD player red cross
TV – Satellite TV receiver red cross
Windows – Curtains O
Windows – Enormous dual pane flush mounted windows with fly screens and block out blinds green tick
EXTERIOR HIGHLIGHTS Wave Pop Top
Awning – Electric red cross
Awning – Lights green tick
Awning – Lights and external working lights red cross
Awning – Quality roll out awning green tick
BBQ – External BBQ on slide O
Bike rack O
Boot – Front boot storage green tick
Entertainment Kit – with external speakers, USB & coax connection O
Entertainment unit – with radio speakers, table, 12V & 240V power and provisions for TV red cross
External slide out kitchen O
Gas – 2 x 4kg gas bottles in boot green tick
Gas – 2 x 9kg gas bottles in compartment red cross
Gas – 2 x 9kg gas bottles on A frame red cross
Handle – External grab handle green tick
Handle – External grab handle with integrated LED light O
Rear wall mouldings green tick
Shower – External shower with hot and cold water O
Spare wheel – Rear bumper mounted green tick
Spare wheel – Under floor mounted red cross
Step – Electric entry step O
Step – Manual pull out entry step green tick
Stone Protection – Premium stone guard protective coating on front or checker plating green tick
Storage – Pass through tunnel boot storage green tick
Table external – Surface mounted O
Tool box on draw bar with shelving and slide out trays red cross
Water – Grey water tank 120L O*
SAFETY FEATURES Wave Pop Top
Brakes – AL-KO (1 x 12″) electric brakes – single axle green tick
Brakes – AL-KO (2 x 10″) electric brakes – tandem axle green tick
Breakaway system green tick asterix
Earth leakage protector – 240V green tick
Entry door – Four point lock with security screen green tick
ESC – AL-KO electronic stability control (ESC) O
Fire extinguisher green tick
Lighting – High mount brake light red cross
LP gas leak detector green tick
Protector – External front window protector shade red cross
Reversing camera O
Smoke detector green tick
CHASSIS FEATURES Wave Pop Top
Brakes – Dexter premium brakes red cross
Chassis – Revolutionary hot dipped galvanised chassis green tick
Corner stedy – AL-KO corner steady stabilisers with foot pads green tick
Extended draw bar red cross
Jockey wheel – AL-KO 150mm centre mounted green tick
Plug – 12 Pin car / loom plug green tick
Stone Guard – External front mesh stone guard on draw bar O
Suspension – Leaf springs green tick
Suspension – Powder coated Cruisemaster CRS independent with shock absorbers O
Water – External tap on A frame O
Wheels – Machined sports alloy wheels including spare 15″
Wheels – 225/70/15 tyres green tick
Wheels – 245/75R16 tyres red cross
MULTI TERRAIN PACK (UPGRADE) Wave Pop Top
Suspension – Cruisemaster CRS independent coil green tick
Solar Panels with regulator green tick
Checker plate – Side wall stone protection green tick
Larger Tyres – 235/75R15 green tick
Wheels – Black alloys green tick
Coupling type – DO35 off road green tick
Grey water tank O
BBQ fitting – External green tick
Brake magnets – AL-KO off road green tick
Decals – Multi Terrain design green tick
External shower green tick
Front window protector red cross
Higher ground clearance green tick
J mould external corner extrusion colour – Black green tick
Wall/Floor extrusion colour – Black green tick
Water tank stone guard type – Heavy duty green tick
EXPLORER PACK (UPGRADE) Wave Pop Top
Suspension – Cruisemaster XT independent coil green tick
Checker plate – increased height side wall stone protection green tick
Decals – Explorer design green tick
Brush protection rails at floor level green tick
16” Alloy sports wheels green tick
16” Tyres – 245/75R16 green tick
Stone guard on A frame green tick
Grey water tank (excludes single axle) green tick
Jerry can provision green tick
