Emerald Caravan

The Avida Emerald is a caravan without peer, a caravan offering so much in creature comforts, exceptional standard features, smooth and stable, a dream to tow.

Discover more

There is much more to a Emerald than meets the eye. Every new Avida Emerald caravan has a very important attribute we simply call “peace of mind”. Very apparent is the high standard of fit out in each Emerald caravan, the huge amount of storage inside and out, the vast choice of both internal and external decors and of course, quality appliances designed for a quality lifestyle out on the road.

What is not readily apparent is the hours of engineering and design expertise, the superior construction techniques and premium quality materials used to create the strongest caravan with the thickest sandwich panel walls, roof and metal sheathed floor, all with more insulation – Your Emerald is made to last.

Get the details

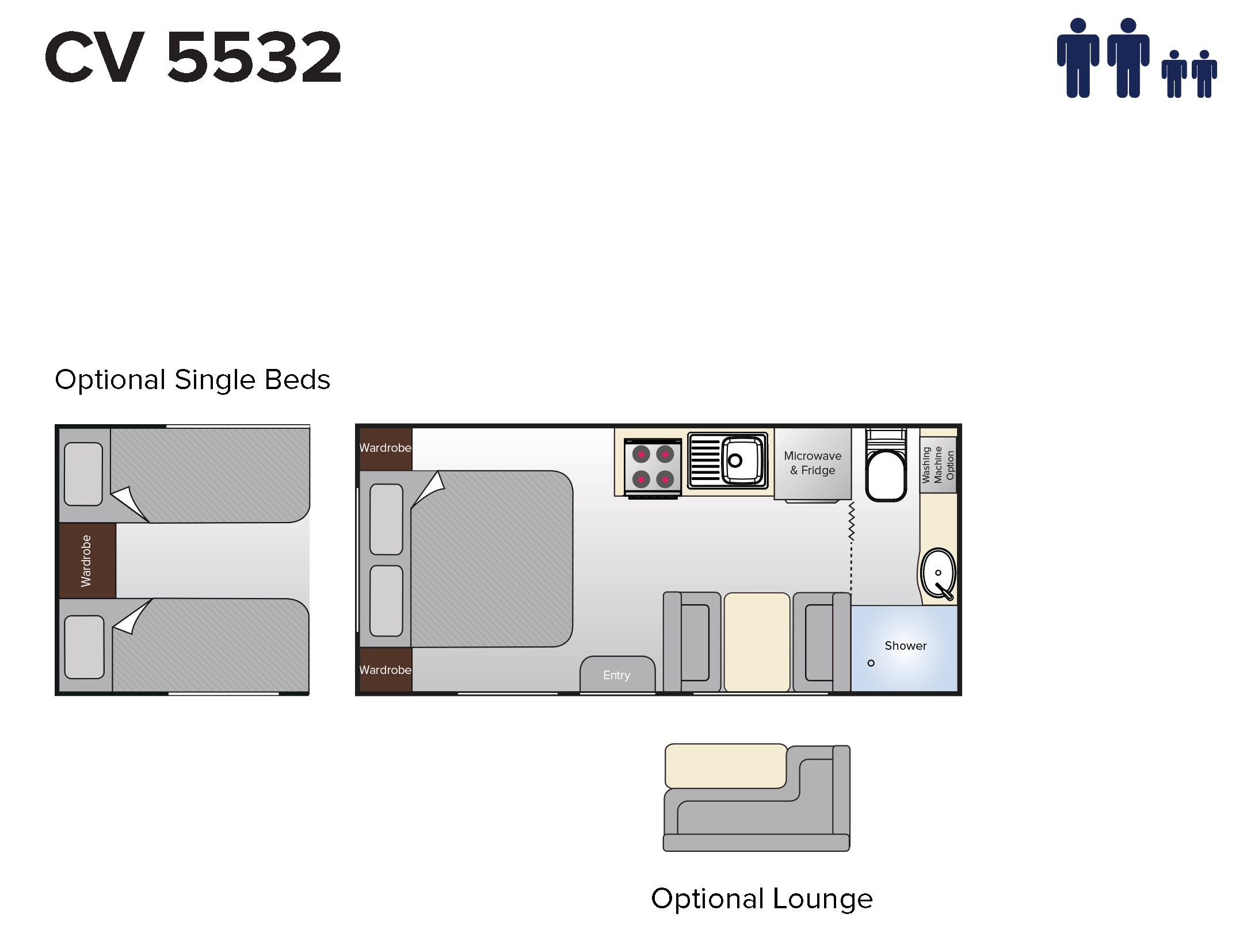

CV5532 Emerald Caravan

The Emerald CV5532 caravan suits a young travelling family and has an incredible amount of living space and functionality. There is a choice of single beds or a queen bed at the front of the caravan, and in the living area you can choose between a dinette which also converts into a sleeping area suitable for two smaller travellers (perfect for the kids) or a lounge area. The bathroom is located conveniently at the rear of the caravan and is separated from the rest of the living area which the door is closed.

Model Travel Length Ext. Height Ball Mass (empty)*
Tare Weight*
CV5532 – Tourer 7200mm 2965mm 150kg 1735kg
CV5532 – Multi Terrain 7220mm 3120mm 130kg 1815kg
CV5532 – Explorer 7220mm 3180mm 168kg 2028kg

* Note: The Tare and Ball weights in the table above are approximate only. Weights will vary depending on the options fitted at both factory and dealer. To find our more information consult your dealer.

Model Ext.
Body Length
Ext. Width
(inc. awning)
Int. Height Axles
17 Foot – 55 Series 5570mm 2495mm 2015mm Single

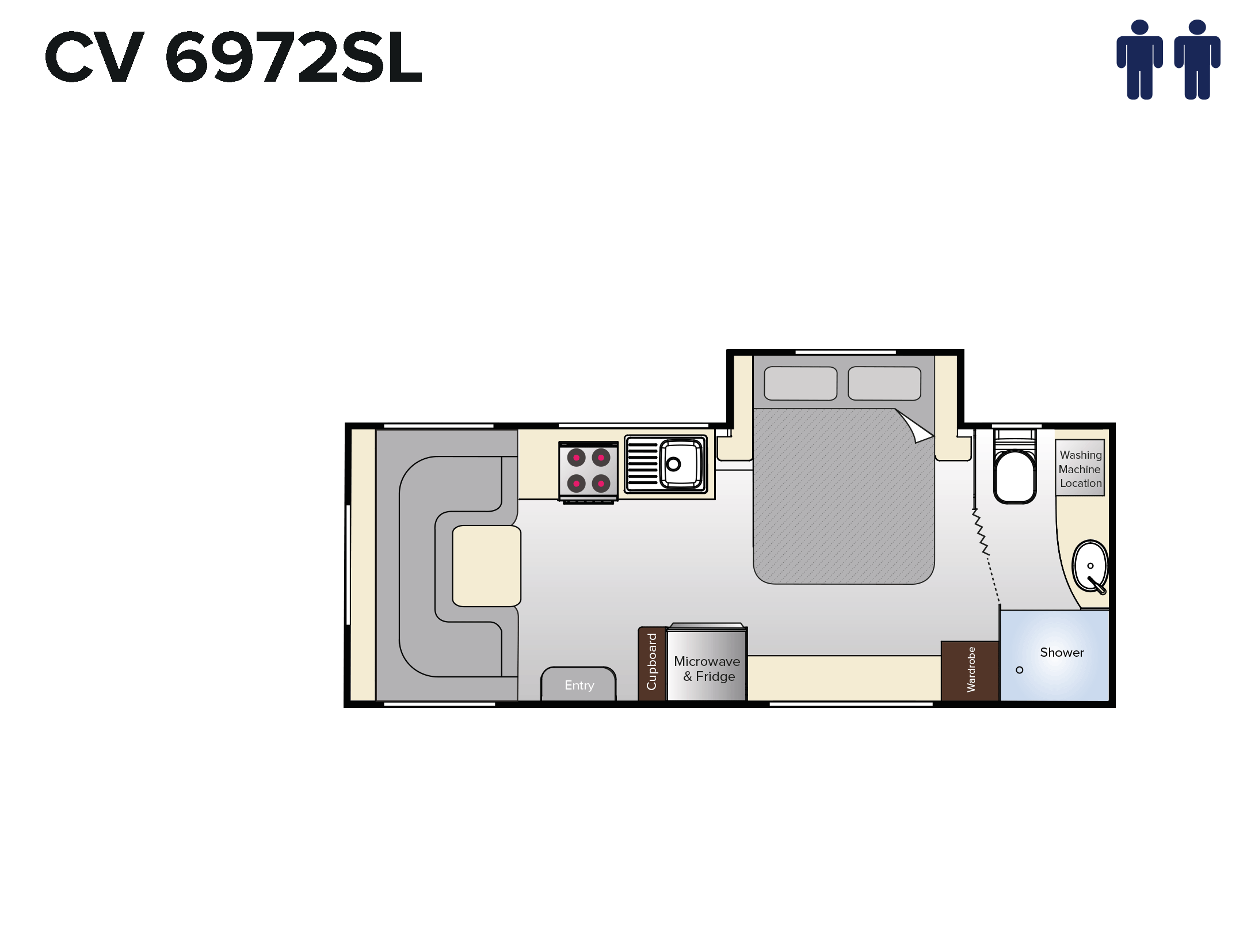

CV6972SL Emerald Caravan

The Emerald CV6972SL caravan has ample living space and its capable of sleeping two travellers making it a 2 berth caravan. It has a generous bathroom, kitchen area and a sociable dinette for dining and living. The queen bed is in a slideout room which can extend at the push of a button to open up the living area of the caravan.

Model Travel Length Ext. Height Ball Mass (empty)*
Tare Weight*
CV6972SL – Tourer 8505mm 2965mm 180kg 2340kg
CV6972SL – Multi Terrain 8505mm 3120mm 174kg 2366kg
CV6972SL – Explorer 8505mm 3180mm 220kg 2572kg

* Note: The Tare and Ball weights in the table above are approximate only. Weights will vary depending on the options fitted at both factory and dealer. To find our more information consult your dealer.

Model Ext.
Body Length
Ext. Width
(inc. awning)
Int. Height Axles
21 Foot – 69 Series 6975mm 2495mm 2015mm Tandem

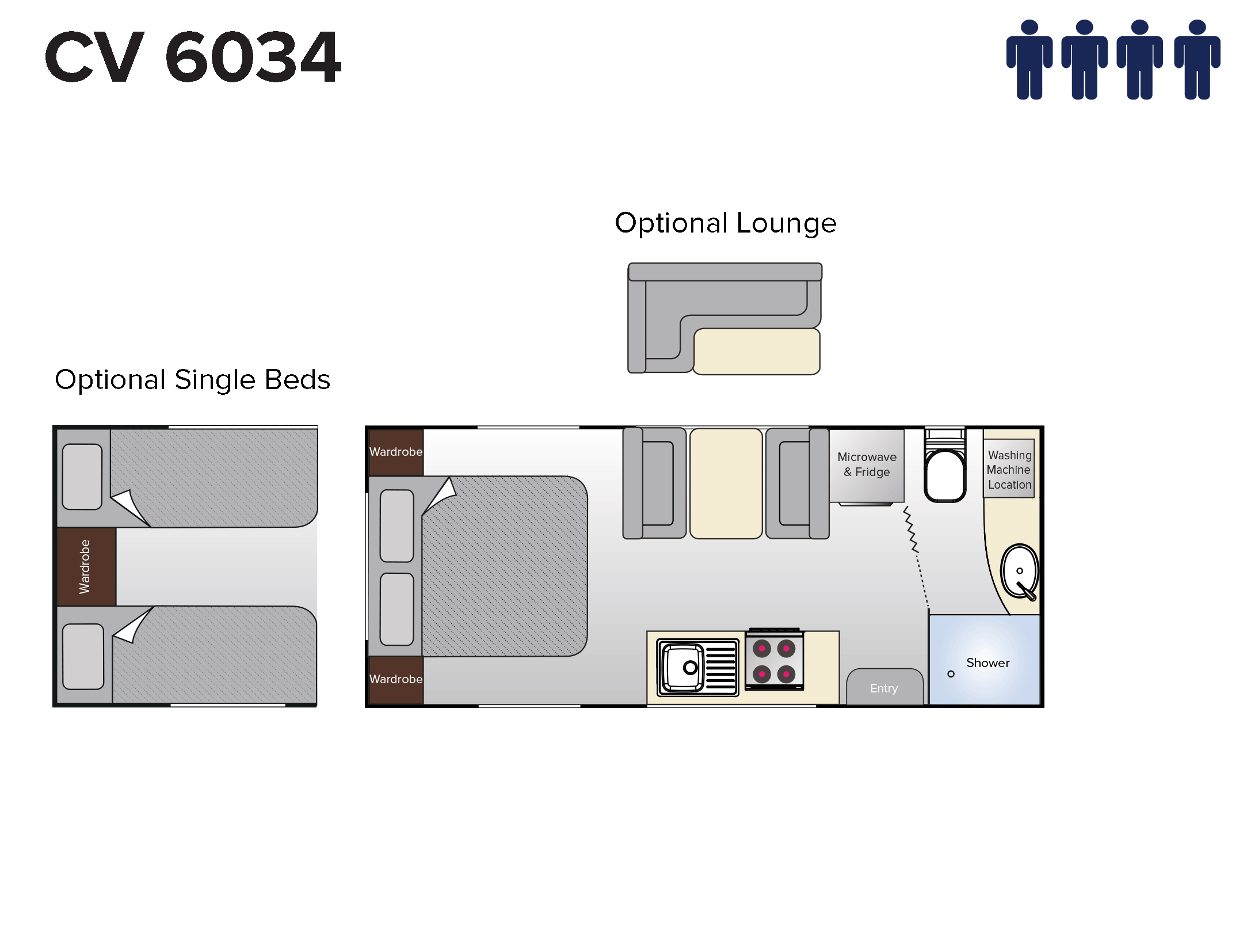

CV6034QB Emerald Caravan

The Emerald CV6034QB caravan gives you the option of having a queen bed or single beds at the front of the caravan for comfortable sleeping quarters. In the living area, you have the option of the dinette or the lounge area that can both be folded and converted into an additional sleeping area.

Model Travel Length Ext. Height Ball Mass (empty)*
Tare Weight*
CV6034 – Tourer 7705mm 2965mm 125kg 1960kg
CV6034 – Multi Terrain 7725mm 3120mm 116kg 2037kg
CV6034 – Explorer 7725mm 3180mm 150kg 2246kg

* Note: The Tare and Ball weights in the table above are approximate only. Weights will vary depending on the options fitted at both factory and dealer. To find our more information consult your dealer.

Model Ext.
Body Length
Ext. Width
(inc. awning)
Int. Height Axles
18 Foot – 60 Series 6075mm 2495mm 2015mm Tandem

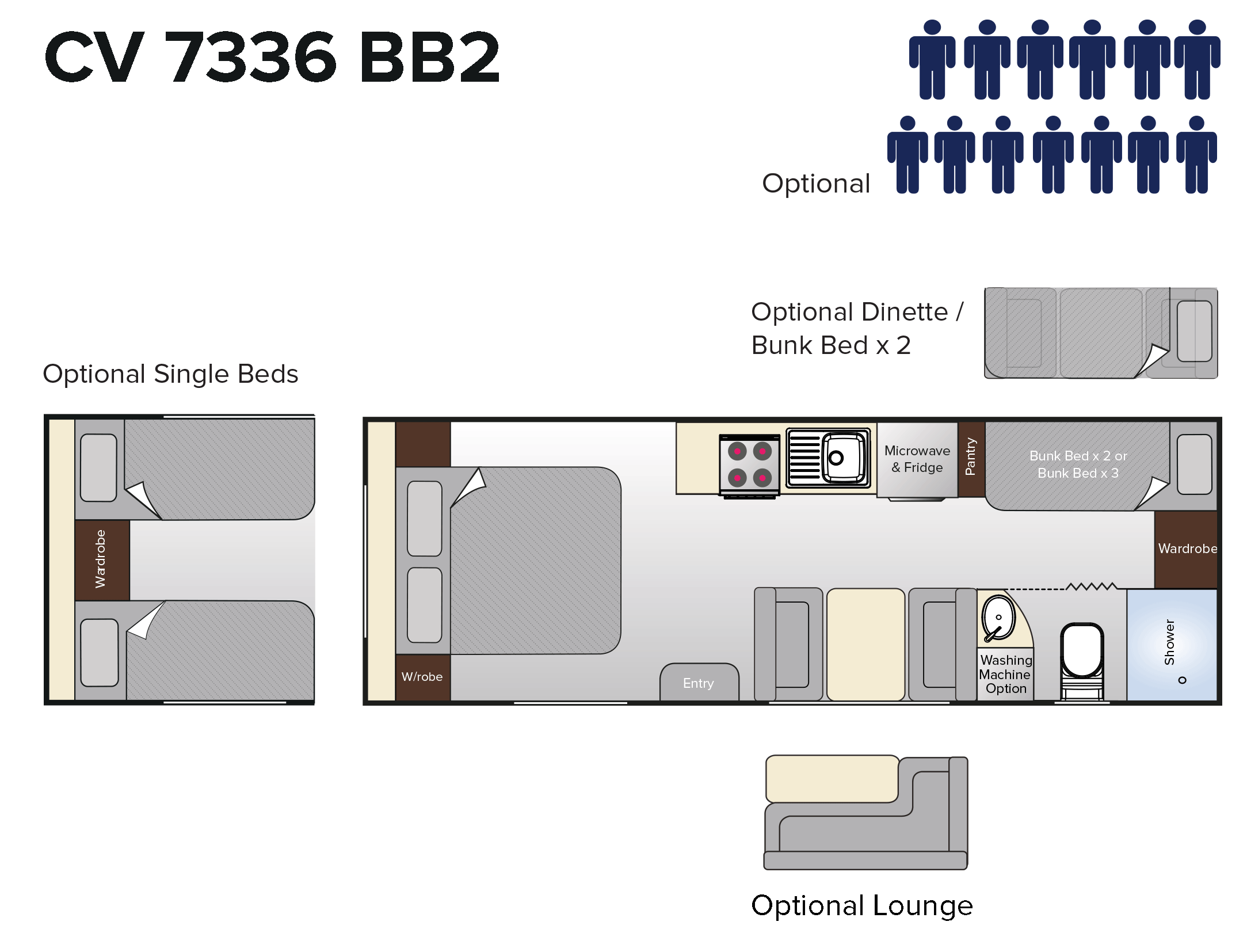

CV7336BB2 Emerald Caravan

The Emerald CV7336BB2 caravan can cater for the larger family with plenty of sleeping room depending on the options chosen.

In the bedroom area at the front of the caravan you can have a comfortable queen bed, or option for two single beds. At the rear of the caravan you can go with a bunk bed with two beds or the optional dinette under the top bunk, or go for the optional triple bunk for more sleeping capacity. In the living area, there is a choice of dinette or lounge which both convert into additional sleeping area too.

Model Travel Length External Height Ball mass (empty)
Approx*
Tare weight
Approx*
CV7336BB2 – Tourer 9005mm 2965mm 152kg 2292kg
CV7336BB2 – Multi Terrain Pack 9025mm 3120mm 146kg 2378kg
CV7336BB2 – Multi Terrain & Explorer Packs 9025mm 3180mm 250kg 2556kg

* Note: The Tare and Ball weights in the table above are approximate only. Weights will vary depending on the options fitted at both factory and dealer. To find our more information consult your dealer.

Model Ext.
Body Length
Ext. Width
(inc. awning)
Int. Height Axles
22 Foot – 73 Series 7375mm 2495mm 2015mm Tandem

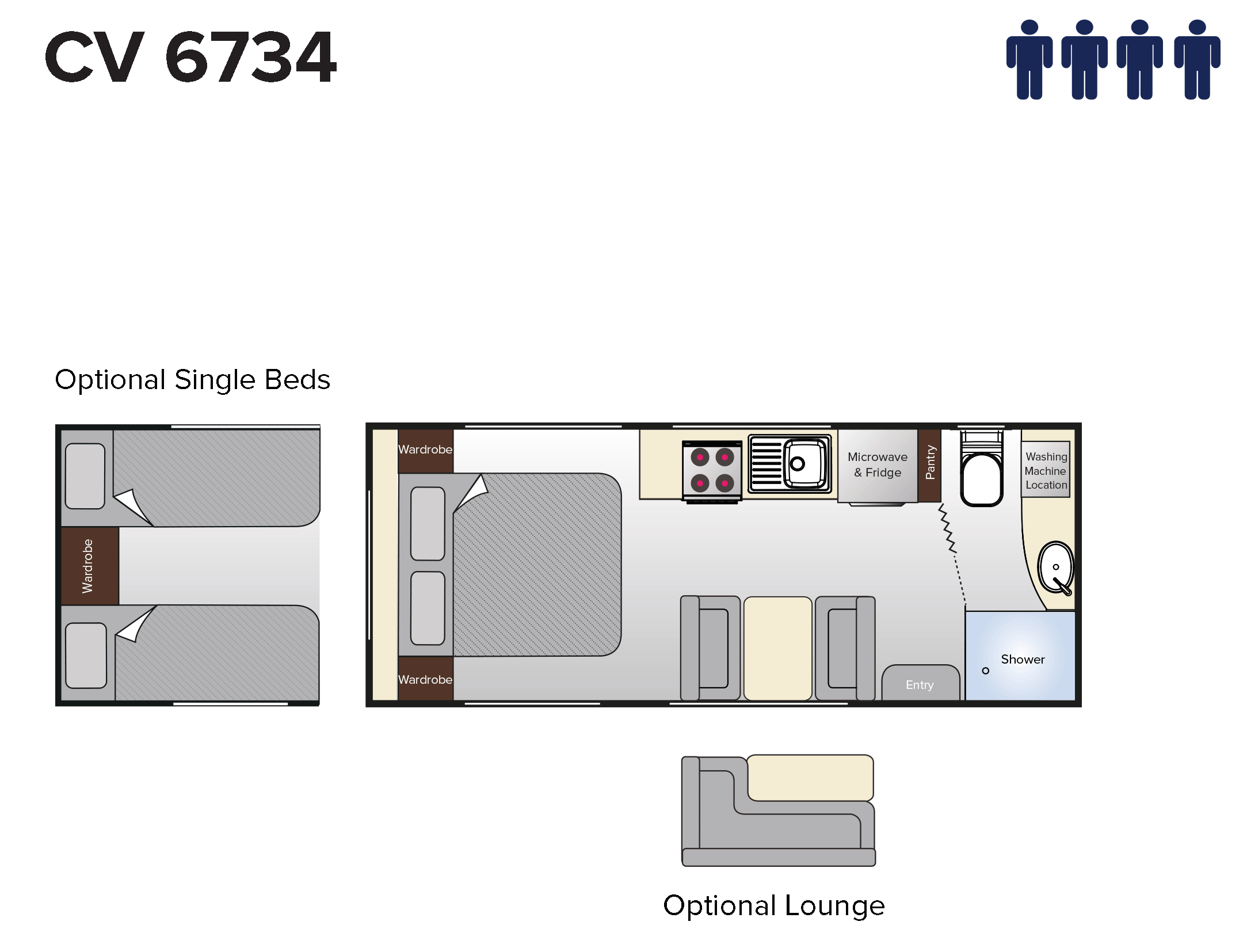

CV6734QB Emerald Caravan

The Emerald CV6734QB is a 4 berth caravan with configurable options allowing you to take control of the layout of your caravan. Up front you can choose to sleeping in a comfortable queen bed, or alternatively option for two single beds. In the central living area, you can enjoy your meals and living in a spacious dinette, or option for the lounge area instead, both of which convert into additional sleeping area. The bathroom is neatly tucked away at the rear of the caravan.

Model Travel Length Ext. Height Ball Mass (empty)*
Tare Weight*
CV6734 – Tourer 8355mm 2965mm 130kg 2035kg
CV6734 – Multi Terrain 8375mm 3120mm 122kg 2111kg
CV6734 – Explorer 8375mm 3180mm 154kg 2318kg

* Note: The Tare and Ball weights in the table above are approximate only. Weights will vary depending on the options fitted at both factory and dealer. To find our more information consult your dealer.

Model Ext.
Body Length
Ext. Width
(inc. awning)
Int. Height Axles
20 Foot – 67 Series 6775mm 2495mm 2015mm Tandem
Bathroom
  • Bathroom door – Concertina
  • Flushing toilet with cassette
  • Large mirror with lights over vanity
  • Roof Hatch
  • Shower – Large Separate Shower with Roller Shower Screen Door
  • Vanity Basin – Stylish Stainless Steel
  • Vanity cabinet
Bedroom
  • Lift up bed on gas struts for easy lifting
  • Storage under bed
Body Construction
  • 33mm Unique Sandwich Panel Wall Construction
  • 45mm Unique Sandwich Panel One Piece Roof Construction
  • 49mm Unique Sandwich Panel One Piece Floor Construction
  • Avida’s Unique Interlocking Wall / Floor
  • Avida’s unique, strong, highly insulated and light weight Sandwich panel construction (hail and dent resistant)
  • Ceiling – One Piece White Fibreglass (Easy to Clean)
  • Entry door – Triple Lock with Security Screen (Camec)
  • External Grab handle
  • Jack location points
  • Large payload allowance
  • Light tare weights
  • Rear Bumper Bar
External Features
  • 125 x 50 Draw Bar
  • 150 x 50 Main frame
  • AL-KO 2 x 10″ Electric Brakes – Tandem axle
  • AL-KO 12″ Electric Brakes – Single axle
  • AL-KO corner steady stabilisers with foot pads
  • AL-KO Coupling Tourer
  • AL-KO 2 x 10″ OFF ROAD Electric Brakes – Tandem axle
  • AVIDA’s Revolutionary Hot Dipped Galvanised Chassis
  • Decals – Multi Terrain
  • Decals – Tourer
  • Decals – Explorer
  • DO35 Off Road Coupling
  • Entry Step – Manual Pull Out
  • External front window Protector Shade
  • External wheel arch trim
  • Front tunnel boot storage
  • Protection Rails at Floor Level
  • High checker plate protection on front
  • Increased Ground Clearance
  • J Mould Corner Extrusion – Black
  • Twin Jerry can holder on draw bar
  • Metal underfloor finish
  • Mud Flaps
  • Quality roll out awning
  • Rear Wall Mouldings – Black
  • External front mesh stone guard on Draw Bar
  • Checker plate stone protection on front wall
  • Storage Bins with Moulded Access Doors
  • Side wall Stone protection – Checker plate 300mm
  • Side wall Stone protection – Checker plate 400mm
  • Suspension Cradle Side Plate
  • Wall/Floor Extrusion – Black
Electrical
  • 1 x 100 amp Battery
  • 12 & 240 volt power systems
  • 12 Pin car / loom plug
  • 12 volt LED lighting throughout
  • 16 amp battery charger for caravan battery
  • 160 watt solar system with regulator
  • 240 volt external GPO
  • 240 Volt Roof Mounted Reverse Cycle Air Conditioner
  • Earth leakage protector – 240 volt
  • High mounted radio aerial with booster
  • Internal stereo with AUX point
  • LED Awning light
  • LED clearance and tail lights
  • Low voltage battery protection
  • Reading lights
  • Solar panel wiring provision
  • Television with DVD Player
  • USB Port
  • Wind-up TV antenna with signal booster
General Interior
  • Aluminium extrusion in overhead cabinets for strength
  • Ample storage throughout
  • Bed – Queen size 1,520mm width with Doona Cover
  • Cabinet door push button self-locking handles
  • Certified weight certificate ex-factory with every model
  • Cupboards – Shannon Oak
  • Dinette with Wall mounted folding leg Table
  • Enormous windows throughout for amazing views
  • Fly screens and block out blinds on all windows
  • High Quality Vinyl Floor Finishes (easy to clean)
  • Magazine holder
  • Mattress – Multilayed Memory Comfort
  • Metal drawer runners & slides
  • One piece roof lined with fibreglass internally for easy cleaning
  • Thick cabinet doors & drawer fronts
  • Vinyl internal wall finish (Easy to Clean)
Heating & Cooling
  • Avida’s unique, strong, highly insulated and light weight Sandwich panel construction
  • Large flush mount aluminium frame dual pane windows
  • Reverse Cycle Air Conditioner – Roof Mounted
Kitchen
  • 190 Litre 2 door Automatic Energy Selection Fridge / Freezer (black)
  • Cutlery drawer insert
  • Large pots & pans storage
  • Large stainless steel household sink with drainer
  • Microwave
  • Pantry slide out
  • Recessed 3 burner LPG stainless steel stove +1 electric cook top with gas griller combo & glass lid for extra bench space
  • Stainless steel range hood with fan & light
Plumbing & LPG
  • 2 x 9kg gas bottles
  • External BBQ Fitting
  • External shower with hot and cold water
  • Gas Bottles on Draw Bar
  • Gas regulator – Single
  • Hot water system 12 volt electric start/gas & 240 volt
  • Mains water pressure reducer
  • Minimal pipe work under floor
  • Waste evacuation hose
  • Water – Grey Tank
  • Water Tank – Heavy Duty Stone Guard
  • Water Tank – Separate fillers for each tank
  • Waste evacuation hose
  • Water – Grey Tank
  • Water Tank – Heavy Duty Stone Guard
  • Water Tank – Separate fillers for each tank
Safety Features
  • AL-KO Off Road Brake Magnets
  • Breakaway system – Single Axle
  • Breakaway system – Tandem Axle
  • Fire Extinguisher
  • High mount stop light
  • LP Gas Leak Detector
  • Safety cupboard door catches
  • Smoke detector
Options
  • Numerous external colour matched exclusive decal collection choices
  • Plenty of choices of interior fabric collections
  • Several bench top colours to choose from
  • Many splashback colours to choose from
  • Additional battery with battery charger upgrade
  • Aluminium shower door to replace roller door
  • AL-KO electronic stability control (ESC)
  • Awning – Electric (most models)
  • Bike Rack
  • Variety of external fibreglass colours to choose from
  • External speakers
  • Gas air heater
  • L-shape lounge with adjustable table leg
  • Light in front boot (where installed)
  • Oven – 3 burner stainless steel stove & 1 electric cook top with gas oven and grill
  • Reversing camera
  • Roof Hatch 500 x 700 – Living Room
  • Satellite TV receiver
  • Separate tap at sink with water filter
  • Shower Door Option – Aluminium Frame
  • Table External – Surface Mounted
  • Trifold table at dinette
  • Upholstered window pelmets
  • USB point at Dinette
  • 2.5kg or 3.0kg washing machine
  • Water – External Tap on Draw Bar
  • Water – Grey Tank
  • Water tank & battery monitor system
  • Window curtains
Suspension
  • AL-KO leaf spring suspension
  • Powdercoated Cruisemaster CRS independent coil spring suspension with Shock Absorbers
  • Powdercoated Cruisemaster XT independent coil spring suspension with Shock Absorbers
Wheels & Tyres
  • 15″ Black Gloss Sports Alloy Wheels
  • 15″ Machined Sports Alloy Wheels
  • 16″ Explorer Sports Alloy Wheels
  • 225/70/15 Tyres
  • 235/75/15 Off Road Tyres
  • 245/75/16 Off Road Tyres
  • AL-KO 150mm Centre mount jockey wheel
  • Spare Wheel – Rear Bumper Mounted
  • Spare Wheel Jack
  • Wide jockey wheel clamp

* Due to continuous improvement, specifications are subject to change without notice.

Note: Some of the above features may not be included on all models. For an accurate feature list please call one of our specialists.

Lengths

Model Exterior Body Length Exterior Width (inc. awning) Interior Height Axle Quantity
17 Foot Layouts 5470mm 2495mm 2015mm Single
18 Foot Layouts 5975mm 2495mm 2015mm Tandem
20 Foot Layouts 6625mm 2495mm 2015mm Tandem
22 Foot Layouts 7275mm 2495mm 2015mm Tandem

Weights & Capacities

Model Travel Length External Height
Ball mass (empty)
Approx.*
Tare weight Approx.*
CV5432QB – Tourer 7200mm 2965mm 152kg 1735kg
CV5432QB – Multi Terrain Pack 7220mm 3120mm 130kg 1815kg
CV5432QB – Multi Terrain & Explorer Packs 7220mm 3180mm 168kg 2028kg
CV5934QB – Tourer 7705mm 2965mm 124kg 1958kg
CV5934QB – Multi Terrain Pack 7725mm 3120mm 116kg 2037kg
CV5934QB – Multi Terrain & Explorer Packs 7725mm 3180mm 150kg 2246kg
CV6634QB – Tourer 8355mm 2965mm 132kg 2034kg
CV6634QB – Multi Terrain Pack 8375mm 3120mm 122kg 2111kg
CV6634QB – Multi Terrain & Explorer Packs 8375mm 3180mm 154kg 2318kg
CV6672SL – Tourer 8355mm 2965mm 180kg 2292kg
CV6672SL – Multi Terrain Pack 8375mm 3120mm 174kg 2366kg
CV6672SL – Multi Terrain & Explorer Packs 8375mm 3180mm 220kg 2572kg
CV7236BB2 – Tourer 9005mm 2965mm 152kg 2292kg
CV7236BB2 – Multi Terrain Pack 9025mm 3120mm 146kg 2378kg
CV7236BB2 – Multi Terrain & Explorer Packs 9025mm 3180mm 250kg 2556kg

* Note: The Tare and Ball weights in the table above are approximate only. Weights will vary depending on the options fitted at both factory and dealer. To find out more information consult your dealer.

3D Tours
Floorplans

CV5532 Emerald Caravan

The Emerald CV5532 caravan suits a young travelling family and has an incredible amount of living space and functionality. There is a choice of single beds or a queen bed at the front of the caravan, and in the living area you can choose between a dinette which also converts into a sleeping area suitable for two smaller travellers (perfect for the kids) or a lounge area. The bathroom is located conveniently at the rear of the caravan and is separated from the rest of the living area which the door is closed.

Model Travel Length Ext. Height Ball Mass (empty)*
Tare Weight*
CV5532 – Tourer 7200mm 2965mm 150kg 1735kg
CV5532 – Multi Terrain 7220mm 3120mm 130kg 1815kg
CV5532 – Explorer 7220mm 3180mm 168kg 2028kg

* Note: The Tare and Ball weights in the table above are approximate only. Weights will vary depending on the options fitted at both factory and dealer. To find our more information consult your dealer.

Model Ext.
Body Length
Ext. Width
(inc. awning)
Int. Height Axles
17 Foot – 55 Series 5570mm 2495mm 2015mm Single

CV6972SL Emerald Caravan

The Emerald CV6972SL caravan has ample living space and its capable of sleeping two travellers making it a 2 berth caravan. It has a generous bathroom, kitchen area and a sociable dinette for dining and living. The queen bed is in a slideout room which can extend at the push of a button to open up the living area of the caravan.

Model Travel Length Ext. Height Ball Mass (empty)*
Tare Weight*
CV6972SL – Tourer 8505mm 2965mm 180kg 2340kg
CV6972SL – Multi Terrain 8505mm 3120mm 174kg 2366kg
CV6972SL – Explorer 8505mm 3180mm 220kg 2572kg

* Note: The Tare and Ball weights in the table above are approximate only. Weights will vary depending on the options fitted at both factory and dealer. To find our more information consult your dealer.

Model Ext.
Body Length
Ext. Width
(inc. awning)
Int. Height Axles
21 Foot – 69 Series 6975mm 2495mm 2015mm Tandem

CV6034QB Emerald Caravan

The Emerald CV6034QB caravan gives you the option of having a queen bed or single beds at the front of the caravan for comfortable sleeping quarters. In the living area, you have the option of the dinette or the lounge area that can both be folded and converted into an additional sleeping area.

Model Travel Length Ext. Height Ball Mass (empty)*
Tare Weight*
CV6034 – Tourer 7705mm 2965mm 125kg 1960kg
CV6034 – Multi Terrain 7725mm 3120mm 116kg 2037kg
CV6034 – Explorer 7725mm 3180mm 150kg 2246kg

* Note: The Tare and Ball weights in the table above are approximate only. Weights will vary depending on the options fitted at both factory and dealer. To find our more information consult your dealer.

Model Ext.
Body Length
Ext. Width
(inc. awning)
Int. Height Axles
18 Foot – 60 Series 6075mm 2495mm 2015mm Tandem

CV7336BB2 Emerald Caravan

The Emerald CV7336BB2 caravan can cater for the larger family with plenty of sleeping room depending on the options chosen.

In the bedroom area at the front of the caravan you can have a comfortable queen bed, or option for two single beds. At the rear of the caravan you can go with a bunk bed with two beds or the optional dinette under the top bunk, or go for the optional triple bunk for more sleeping capacity. In the living area, there is a choice of dinette or lounge which both convert into additional sleeping area too.

Model Travel Length External Height Ball mass (empty)
Approx*
Tare weight
Approx*
CV7336BB2 – Tourer 9005mm 2965mm 152kg 2292kg
CV7336BB2 – Multi Terrain Pack 9025mm 3120mm 146kg 2378kg
CV7336BB2 – Multi Terrain & Explorer Packs 9025mm 3180mm 250kg 2556kg

* Note: The Tare and Ball weights in the table above are approximate only. Weights will vary depending on the options fitted at both factory and dealer. To find our more information consult your dealer.

Model Ext.
Body Length
Ext. Width
(inc. awning)
Int. Height Axles
22 Foot – 73 Series 7375mm 2495mm 2015mm Tandem

CV6734QB Emerald Caravan

The Emerald CV6734QB is a 4 berth caravan with configurable options allowing you to take control of the layout of your caravan. Up front you can choose to sleeping in a comfortable queen bed, or alternatively option for two single beds. In the central living area, you can enjoy your meals and living in a spacious dinette, or option for the lounge area instead, both of which convert into additional sleeping area. The bathroom is neatly tucked away at the rear of the caravan.

Model Travel Length Ext. Height Ball Mass (empty)*
Tare Weight*
CV6734 – Tourer 8355mm 2965mm 130kg 2035kg
CV6734 – Multi Terrain 8375mm 3120mm 122kg 2111kg
CV6734 – Explorer 8375mm 3180mm 154kg 2318kg

* Note: The Tare and Ball weights in the table above are approximate only. Weights will vary depending on the options fitted at both factory and dealer. To find our more information consult your dealer.

Model Ext.
Body Length
Ext. Width
(inc. awning)
Int. Height Axles
20 Foot – 67 Series 6775mm 2495mm 2015mm Tandem
Features
Bathroom
  • Bathroom door – Concertina
  • Flushing toilet with cassette
  • Large mirror with lights over vanity
  • Roof Hatch
  • Shower – Large Separate Shower with Roller Shower Screen Door
  • Vanity Basin – Stylish Stainless Steel
  • Vanity cabinet
Bedroom
  • Lift up bed on gas struts for easy lifting
  • Storage under bed
Body Construction
  • 33mm Unique Sandwich Panel Wall Construction
  • 45mm Unique Sandwich Panel One Piece Roof Construction
  • 49mm Unique Sandwich Panel One Piece Floor Construction
  • Avida’s Unique Interlocking Wall / Floor
  • Avida’s unique, strong, highly insulated and light weight Sandwich panel construction (hail and dent resistant)
  • Ceiling – One Piece White Fibreglass (Easy to Clean)
  • Entry door – Triple Lock with Security Screen (Camec)
  • External Grab handle
  • Jack location points
  • Large payload allowance
  • Light tare weights
  • Rear Bumper Bar
External Features
  • 125 x 50 Draw Bar
  • 150 x 50 Main frame
  • AL-KO 2 x 10″ Electric Brakes – Tandem axle
  • AL-KO 12″ Electric Brakes – Single axle
  • AL-KO corner steady stabilisers with foot pads
  • AL-KO Coupling Tourer
  • AL-KO 2 x 10″ OFF ROAD Electric Brakes – Tandem axle
  • AVIDA’s Revolutionary Hot Dipped Galvanised Chassis
  • Decals – Multi Terrain
  • Decals – Tourer
  • Decals – Explorer
  • DO35 Off Road Coupling
  • Entry Step – Manual Pull Out
  • External front window Protector Shade
  • External wheel arch trim
  • Front tunnel boot storage
  • Protection Rails at Floor Level
  • High checker plate protection on front
  • Increased Ground Clearance
  • J Mould Corner Extrusion – Black
  • Twin Jerry can holder on draw bar
  • Metal underfloor finish
  • Mud Flaps
  • Quality roll out awning
  • Rear Wall Mouldings – Black
  • External front mesh stone guard on Draw Bar
  • Checker plate stone protection on front wall
  • Storage Bins with Moulded Access Doors
  • Side wall Stone protection – Checker plate 300mm
  • Side wall Stone protection – Checker plate 400mm
  • Suspension Cradle Side Plate
  • Wall/Floor Extrusion – Black
Electrical
  • 1 x 100 amp Battery
  • 12 & 240 volt power systems
  • 12 Pin car / loom plug
  • 12 volt LED lighting throughout
  • 16 amp battery charger for caravan battery
  • 160 watt solar system with regulator
  • 240 volt external GPO
  • 240 Volt Roof Mounted Reverse Cycle Air Conditioner
  • Earth leakage protector – 240 volt
  • High mounted radio aerial with booster
  • Internal stereo with AUX point
  • LED Awning light
  • LED clearance and tail lights
  • Low voltage battery protection
  • Reading lights
  • Solar panel wiring provision
  • Television with DVD Player
  • USB Port
  • Wind-up TV antenna with signal booster
General Interior
  • Aluminium extrusion in overhead cabinets for strength
  • Ample storage throughout
  • Bed – Queen size 1,520mm width with Doona Cover
  • Cabinet door push button self-locking handles
  • Certified weight certificate ex-factory with every model
  • Cupboards – Shannon Oak
  • Dinette with Wall mounted folding leg Table
  • Enormous windows throughout for amazing views
  • Fly screens and block out blinds on all windows
  • High Quality Vinyl Floor Finishes (easy to clean)
  • Magazine holder
  • Mattress – Multilayed Memory Comfort
  • Metal drawer runners & slides
  • One piece roof lined with fibreglass internally for easy cleaning
  • Thick cabinet doors & drawer fronts
  • Vinyl internal wall finish (Easy to Clean)
Heating & Cooling
  • Avida’s unique, strong, highly insulated and light weight Sandwich panel construction
  • Large flush mount aluminium frame dual pane windows
  • Reverse Cycle Air Conditioner – Roof Mounted
Kitchen
  • 190 Litre 2 door Automatic Energy Selection Fridge / Freezer (black)
  • Cutlery drawer insert
  • Large pots & pans storage
  • Large stainless steel household sink with drainer
  • Microwave
  • Pantry slide out
  • Recessed 3 burner LPG stainless steel stove +1 electric cook top with gas griller combo & glass lid for extra bench space
  • Stainless steel range hood with fan & light
Plumbing & LPG
  • 2 x 9kg gas bottles
  • External BBQ Fitting
  • External shower with hot and cold water
  • Gas Bottles on Draw Bar
  • Gas regulator – Single
  • Hot water system 12 volt electric start/gas & 240 volt
  • Mains water pressure reducer
  • Minimal pipe work under floor
  • Waste evacuation hose
  • Water – Grey Tank
  • Water Tank – Heavy Duty Stone Guard
  • Water Tank – Separate fillers for each tank
  • Waste evacuation hose
  • Water – Grey Tank
  • Water Tank – Heavy Duty Stone Guard
  • Water Tank – Separate fillers for each tank
Safety Features
  • AL-KO Off Road Brake Magnets
  • Breakaway system – Single Axle
  • Breakaway system – Tandem Axle
  • Fire Extinguisher
  • High mount stop light
  • LP Gas Leak Detector
  • Safety cupboard door catches
  • Smoke detector
Options
  • Numerous external colour matched exclusive decal collection choices
  • Plenty of choices of interior fabric collections
  • Several bench top colours to choose from
  • Many splashback colours to choose from
  • Additional battery with battery charger upgrade
  • Aluminium shower door to replace roller door
  • AL-KO electronic stability control (ESC)
  • Awning – Electric (most models)
  • Bike Rack
  • Variety of external fibreglass colours to choose from
  • External speakers
  • Gas air heater
  • L-shape lounge with adjustable table leg
  • Light in front boot (where installed)
  • Oven – 3 burner stainless steel stove & 1 electric cook top with gas oven and grill
  • Reversing camera
  • Roof Hatch 500 x 700 – Living Room
  • Satellite TV receiver
  • Separate tap at sink with water filter
  • Shower Door Option – Aluminium Frame
  • Table External – Surface Mounted
  • Trifold table at dinette
  • Upholstered window pelmets
  • USB point at Dinette
  • 2.5kg or 3.0kg washing machine
  • Water – External Tap on Draw Bar
  • Water – Grey Tank
  • Water tank & battery monitor system
  • Window curtains
Suspension
  • AL-KO leaf spring suspension
  • Powdercoated Cruisemaster CRS independent coil spring suspension with Shock Absorbers
  • Powdercoated Cruisemaster XT independent coil spring suspension with Shock Absorbers
Wheels & Tyres
  • 15″ Black Gloss Sports Alloy Wheels
  • 15″ Machined Sports Alloy Wheels
  • 16″ Explorer Sports Alloy Wheels
  • 225/70/15 Tyres
  • 235/75/15 Off Road Tyres
  • 245/75/16 Off Road Tyres
  • AL-KO 150mm Centre mount jockey wheel
  • Spare Wheel – Rear Bumper Mounted
  • Spare Wheel Jack
  • Wide jockey wheel clamp

* Due to continuous improvement, specifications are subject to change without notice.

Note: Some of the above features may not be included on all models. For an accurate feature list please call one of our specialists.

Specifications

Lengths

Model Exterior Body Length Exterior Width (inc. awning) Interior Height Axle Quantity
17 Foot Layouts 5470mm 2495mm 2015mm Single
18 Foot Layouts 5975mm 2495mm 2015mm Tandem
20 Foot Layouts 6625mm 2495mm 2015mm Tandem
22 Foot Layouts 7275mm 2495mm 2015mm Tandem

Weights & Capacities

Model Travel Length External Height
Ball mass (empty)
Approx.*
Tare weight Approx.*
CV5432QB – Tourer 7200mm 2965mm 152kg 1735kg
CV5432QB – Multi Terrain Pack 7220mm 3120mm 130kg 1815kg
CV5432QB – Multi Terrain & Explorer Packs 7220mm 3180mm 168kg 2028kg
CV5934QB – Tourer 7705mm 2965mm 124kg 1958kg
CV5934QB – Multi Terrain Pack 7725mm 3120mm 116kg 2037kg
CV5934QB – Multi Terrain & Explorer Packs 7725mm 3180mm 150kg 2246kg
CV6634QB – Tourer 8355mm 2965mm 132kg 2034kg
CV6634QB – Multi Terrain Pack 8375mm 3120mm 122kg 2111kg
CV6634QB – Multi Terrain & Explorer Packs 8375mm 3180mm 154kg 2318kg
CV6672SL – Tourer 8355mm 2965mm 180kg 2292kg
CV6672SL – Multi Terrain Pack 8375mm 3120mm 174kg 2366kg
CV6672SL – Multi Terrain & Explorer Packs 8375mm 3180mm 220kg 2572kg
CV7236BB2 – Tourer 9005mm 2965mm 152kg 2292kg
CV7236BB2 – Multi Terrain Pack 9025mm 3120mm 146kg 2378kg
CV7236BB2 – Multi Terrain & Explorer Packs 9025mm 3180mm 250kg 2556kg

* Note: The Tare and Ball weights in the table above are approximate only. Weights will vary depending on the options fitted at both factory and dealer. To find out more information consult your dealer.

Enquire

State
Country
I agree to the Terms & Conditions
