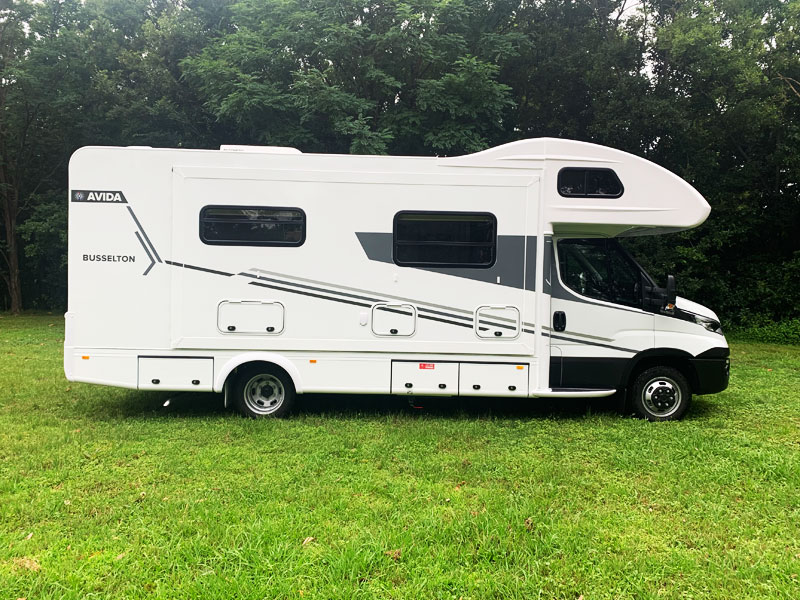

Busselton

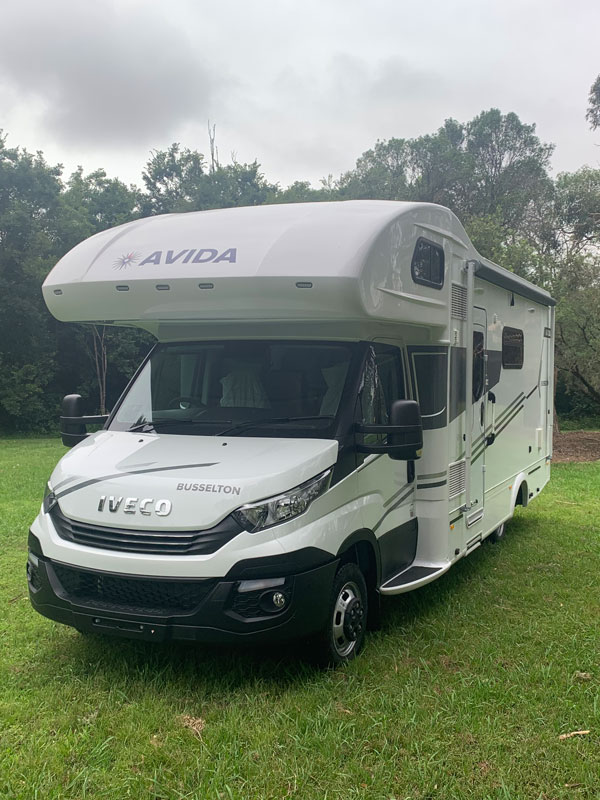

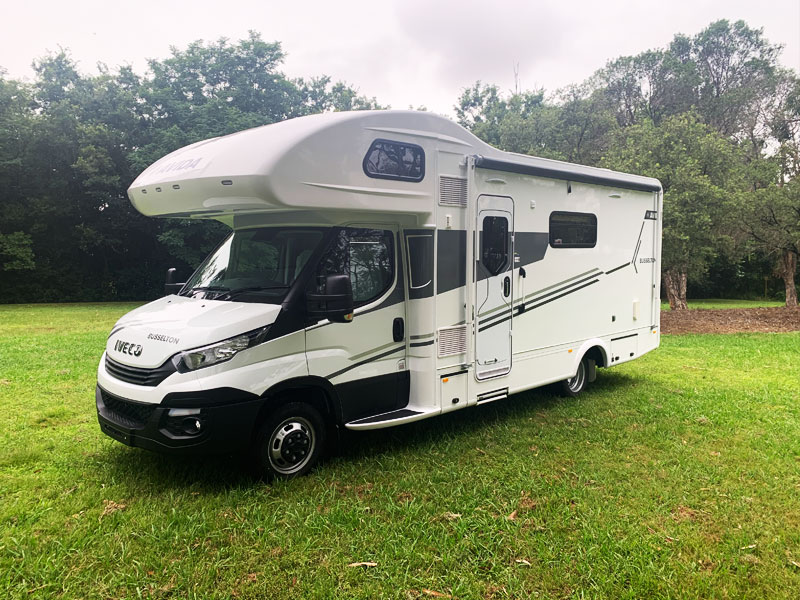

The Avida Busselton range is fully self-contained with kitchen, rear or mid bathroom, and is built on the rear wheel drive Iveco chassis. Available as a C Type (bed over cabin), the Avida Busselton has a number of models with and without slide out room and can be driven on a standard car licence!

Layout Configuration

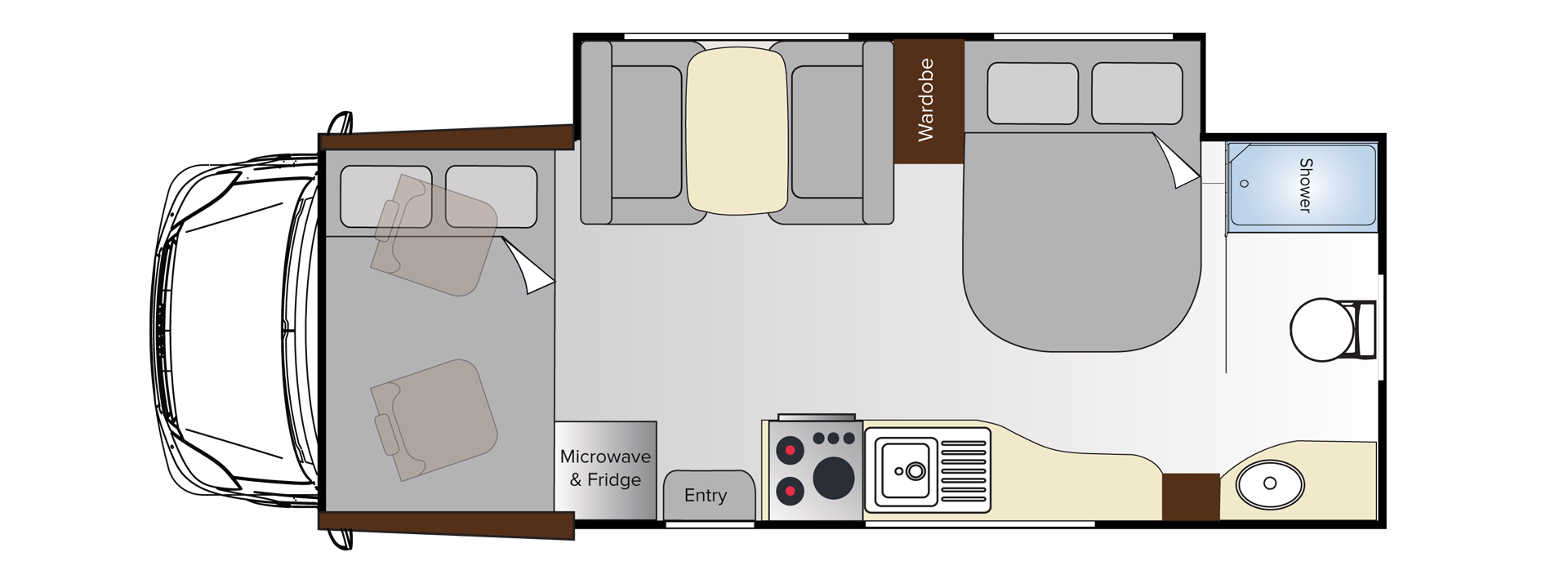

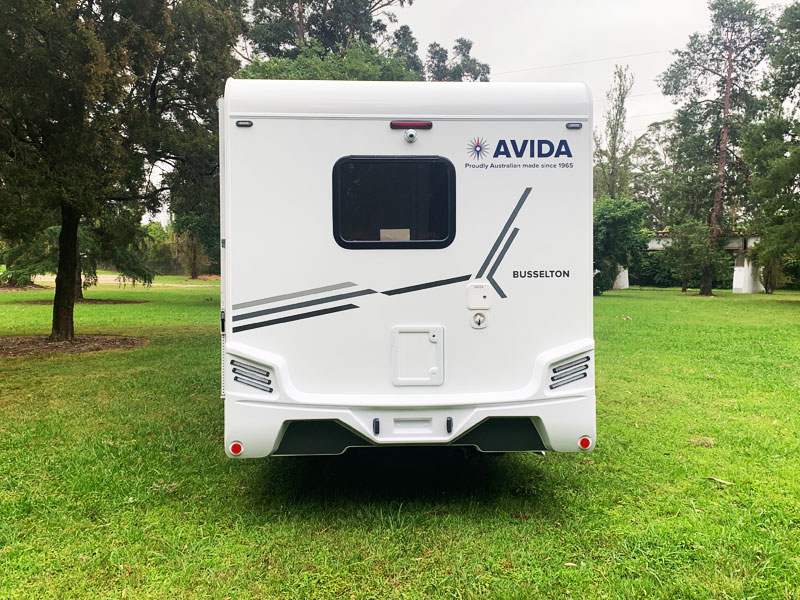

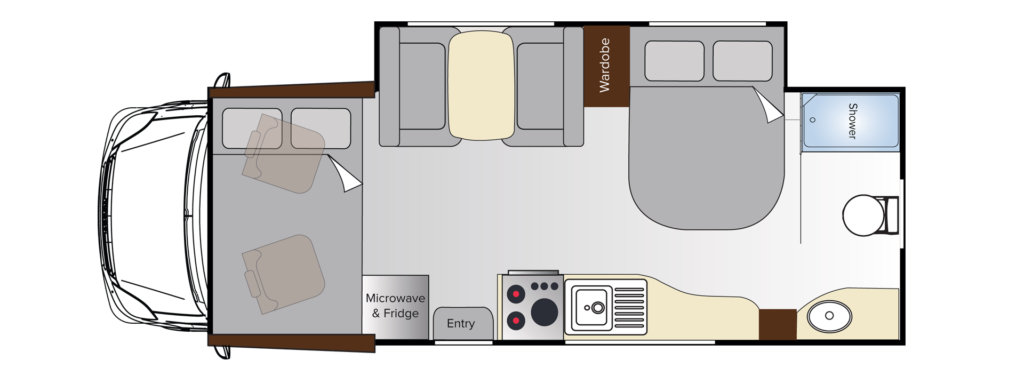

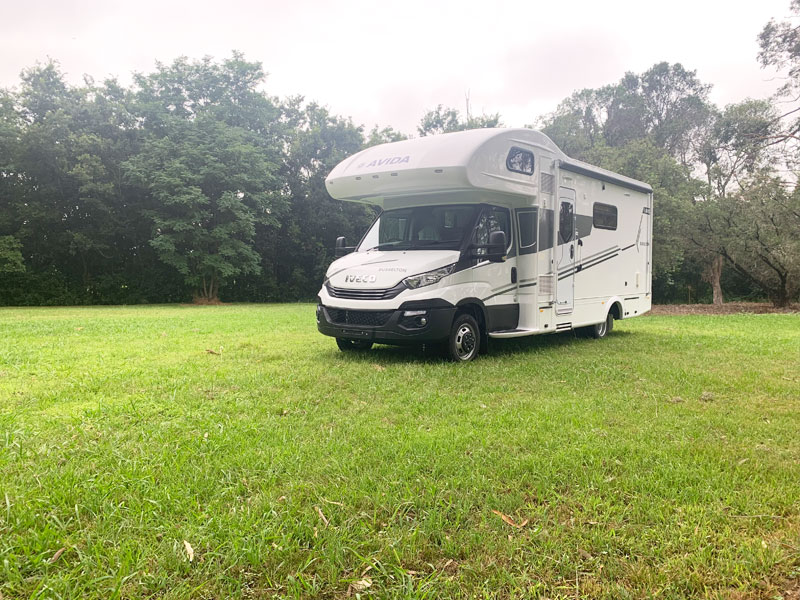

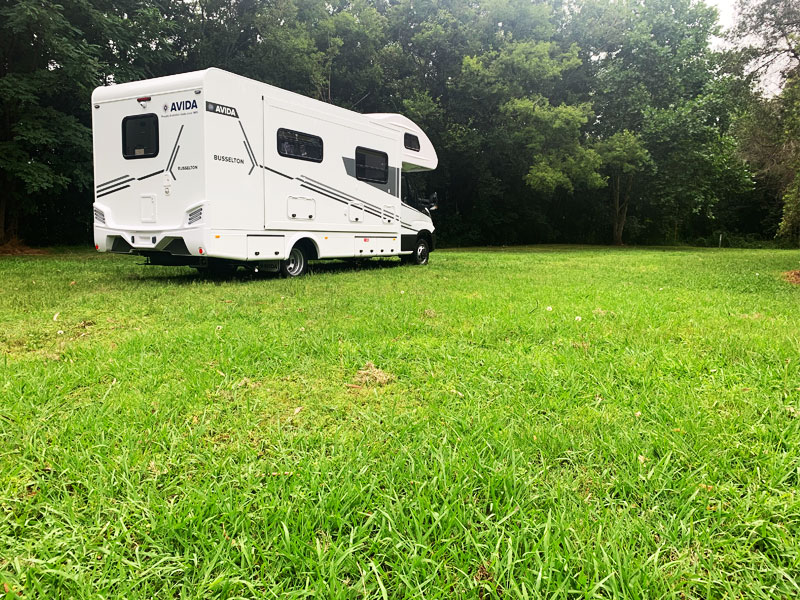

C7544SL MY21

Iveco
Exterior Length 7500mm
Exterior Width 2320mm
Exterior Height 3125mm
Interior Height 1973mm
Fresh Water Capacity 80ltr
Grey Water Capacity 80ltr
Black Water Capacity 17ltr
Hot Water Capacity 14ltr
LP Gas 2 x 4kg

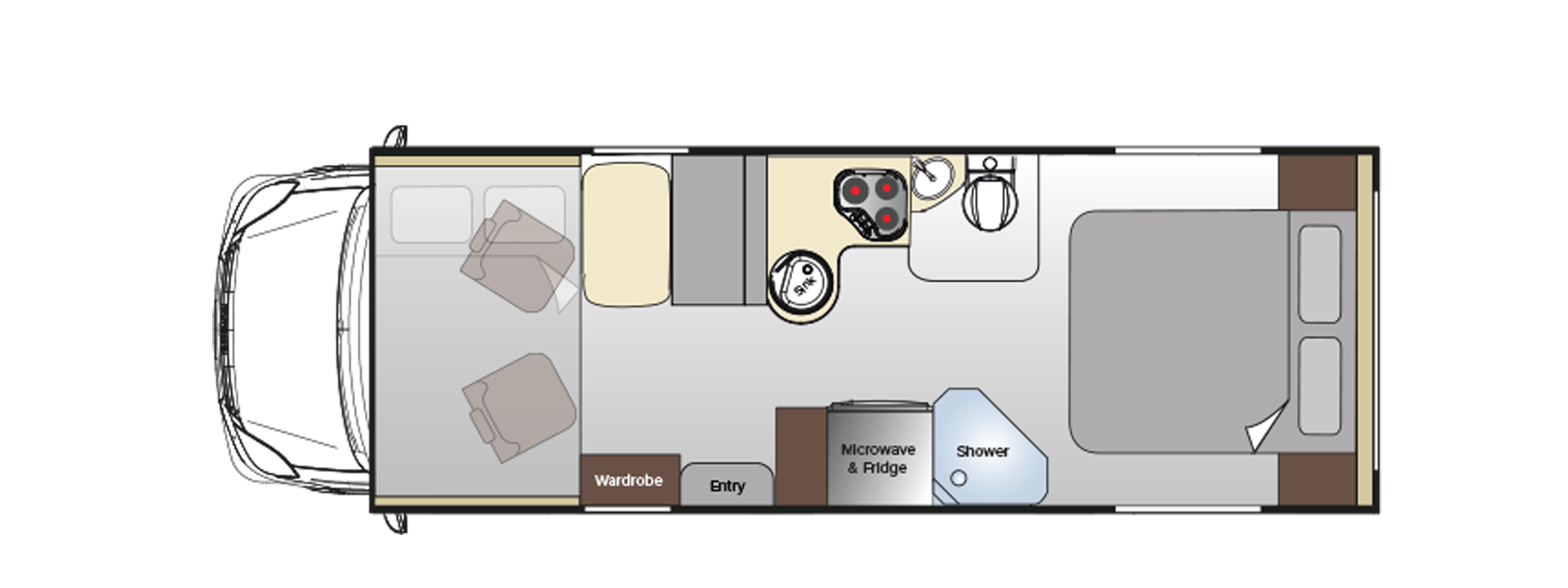

C7814 MY21

Iveco
Exterior Length 7800mm
Exterior Width 2320mm
Exterior Height 3125mm
Interior Height 1973mm
Fresh Water Capacity 80ltr
Grey Water Capacity 80ltr
Black Water Capacity 17ltr
Hot Water Capacity 14ltr
LP Gas 2 x 4kg

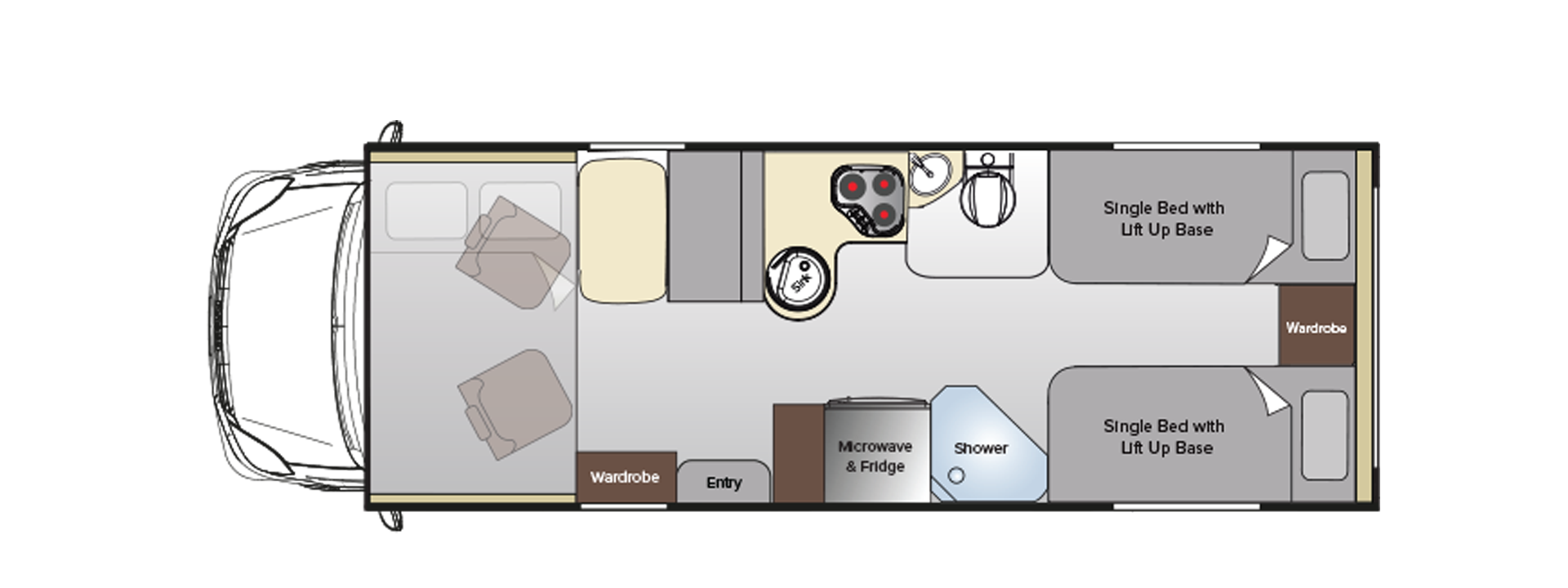

C7824 MY21

Iveco
Exterior Length 7800mm
Exterior Width 2320mm
Exterior Height 3125mm
Interior Height 1973mm
Fresh Water Capacity 80ltr
Grey Water Capacity 80ltr
Black Water Capacity 17ltr
Hot Water Capacity 14ltr
LP Gas 2 x 4kg

Chassis Specifications:

Chassis Iveco 50C17
Engine 4 cylinder turbo diesel
Displacement 2998cc
Power 125kw (170hp) @ 2900-3500rpm
Torque 430Nm @ 1500-2600rpm
Transmission 8 speed auto
Fuel Type Diesel
Fuel Capacity 100ltr
Rear Wheel Configuration Dual rear wheels (195/75 R16 tyres)
Wheelbase 4350mm
Suspension Independent front suspension
Brakes Four wheel disc brakes
Gross Vehicle Mass 4495kg (Upgradable to 5200kg)
Gross Combined Mass 8000kg
Towing Capacity 3505kg
Licence Requirement Standard car licence (Light rigid if GVM is upgraded)

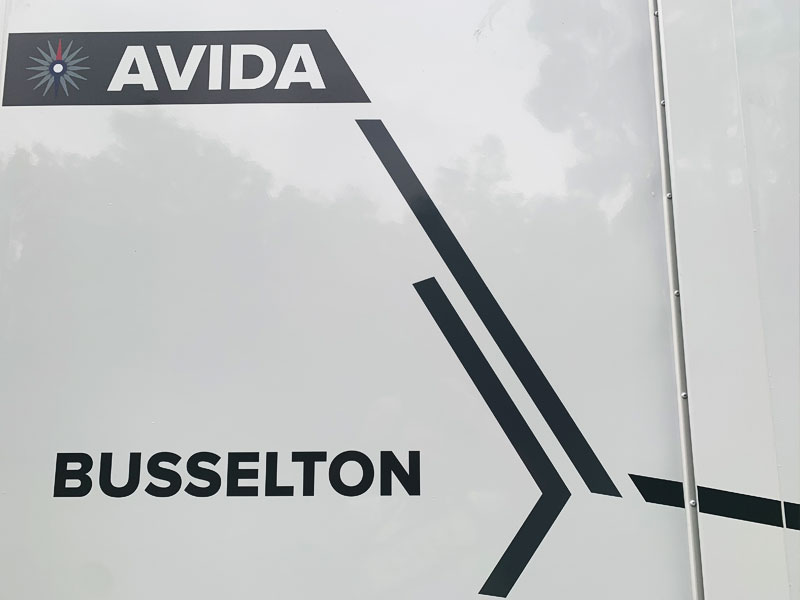

Decals

Antique Violet

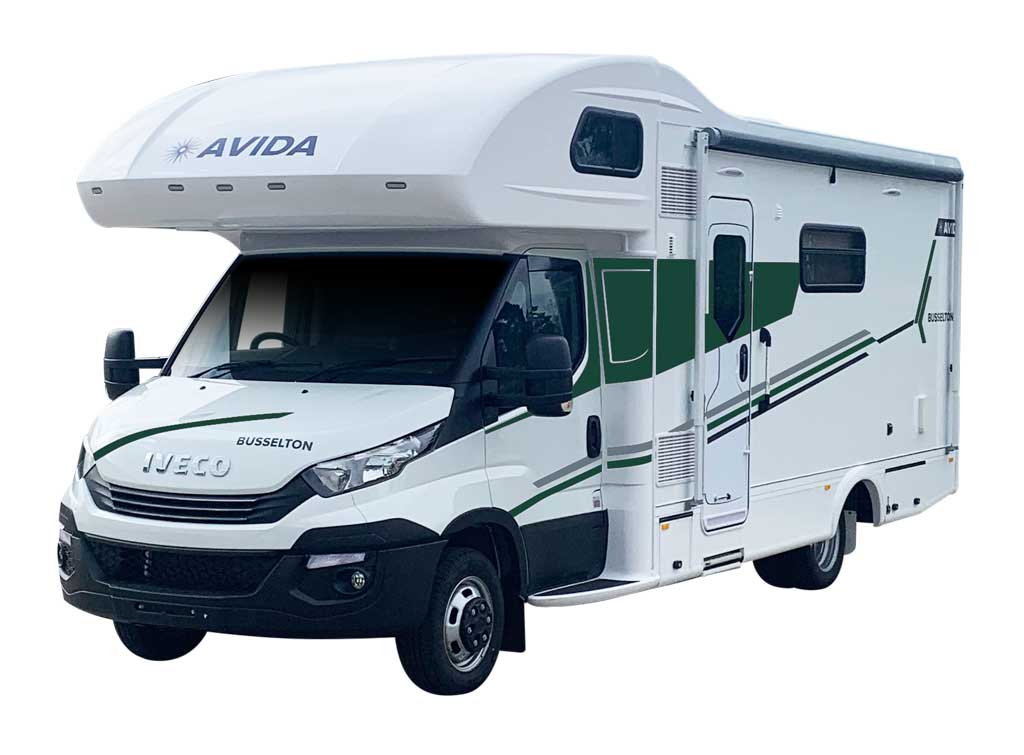

Apple Meadow

Aqua Burst

Ash Silver

Citrine Star

Harbour Shimmer

Maroon Haze

Metallic Dream

Salted Caramel

Sassy Red

Southern Sky

Spiced Mushroom

Air Conditioner – Roof mounted
Avida’s unique, strong, highly insulated and light weight sandwich panel construction with underfloor protection
Compliance – Certified weight certificate ex-factory with every vehicle
Compliance – RVMAP industry accredited manufacturer (look for the accreditation key)

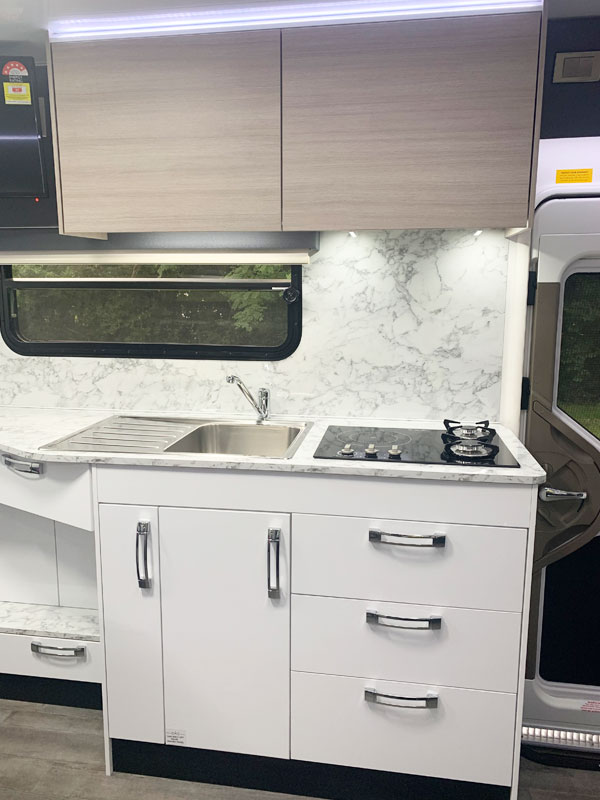

Cooktop – 2 burner gas and 1 induction

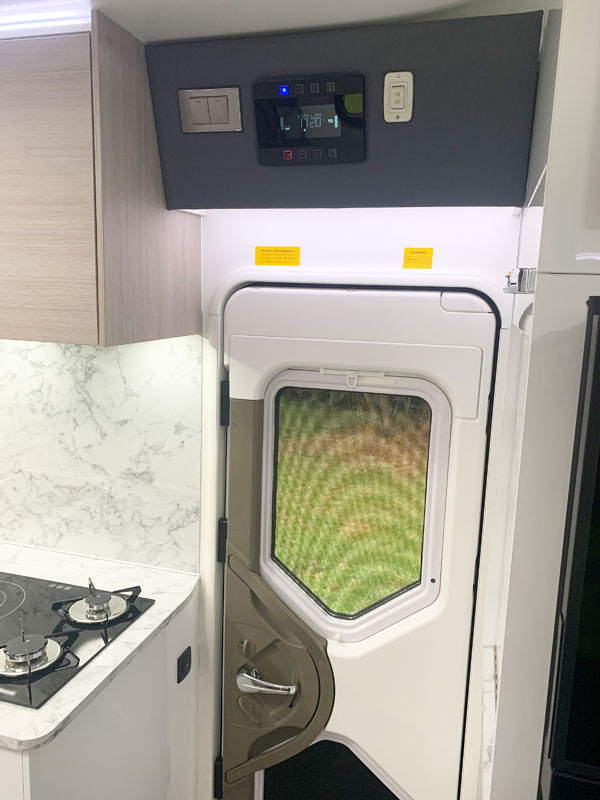

Control Panel – LCD 12 & 240 volt integrated distribution control panel & energy management system
Cupboards – Handlefree overhead
Drawers – Residential Soft Close with metal runners
Fridge/freezer
Microwave
Motorhome battery in addition to the chassis battery – 100A 12V x1
Radio – Inside motorhome and chassis
Slide out pantry
Solar panel system with regulator O

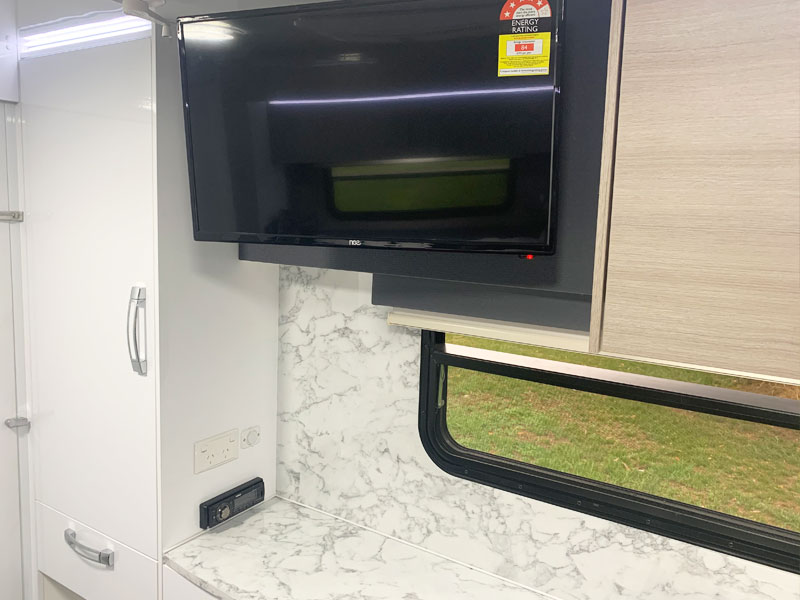

Television with DVD player – Includes wind up TV antenna with signal booster Smart TV

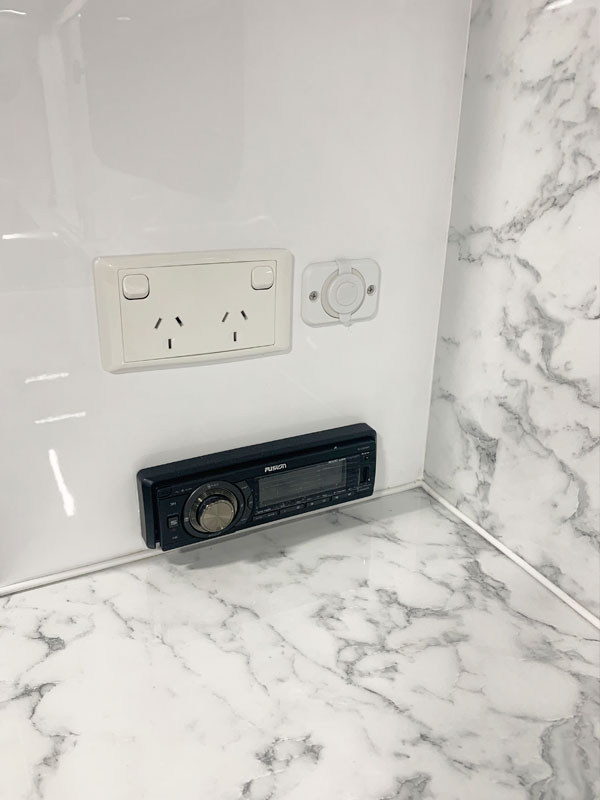

USB charging station
Battery charger for motorhome battery 16A
Cabinet door hardware – D handle with positive catch
Cutlery drawer insert
Diesel furnace heater O
Earth leakage protector – 240V
Extended bench top
Fridge/freezer compressor O
Full length wardrobe
Hot water system 12V electric start/gas & 240V

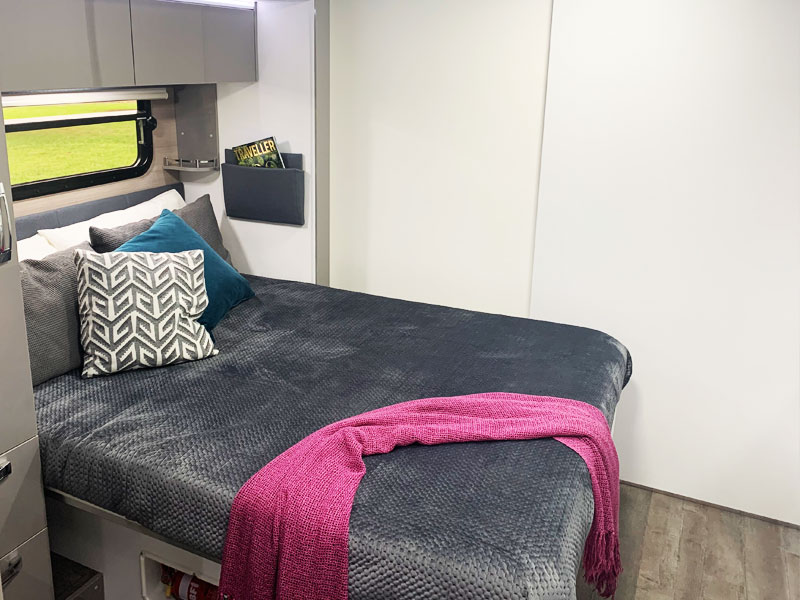

Lift up bed on gas struts*
Magazine holder
Griller – Gas O
Power – 12V & 240V

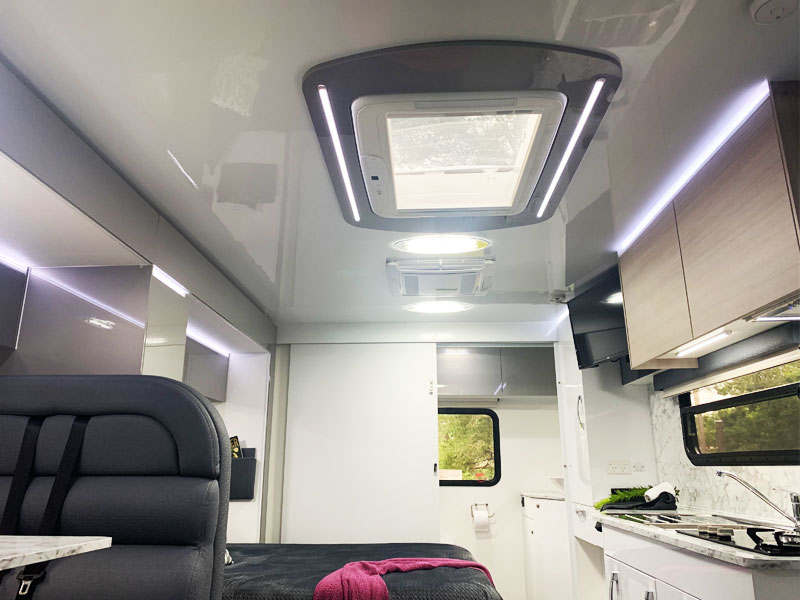

Roof vent in bathroom
Separate tap at sink with water filter O

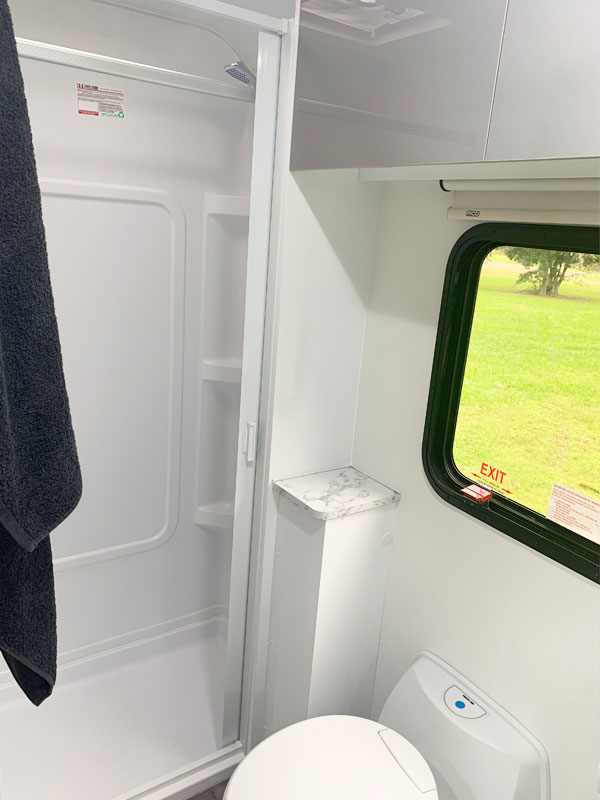

Shower
Single lever mixer water taps

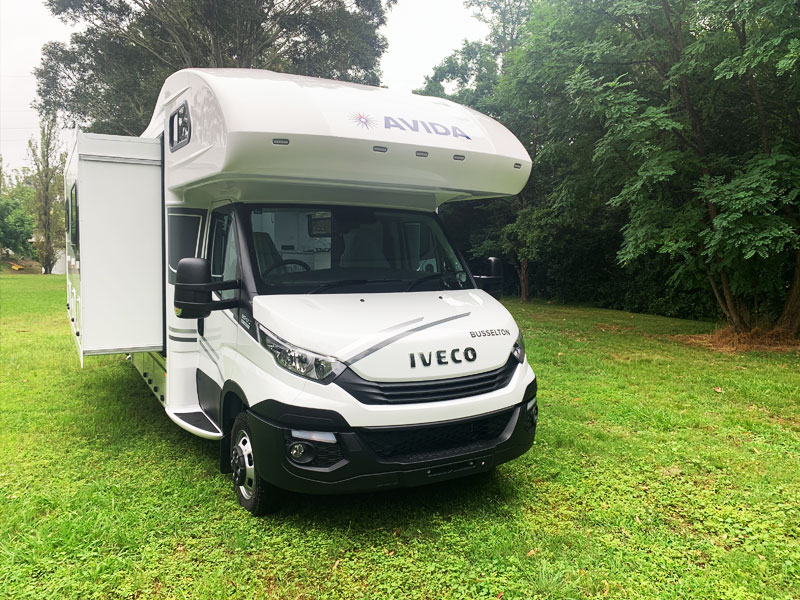

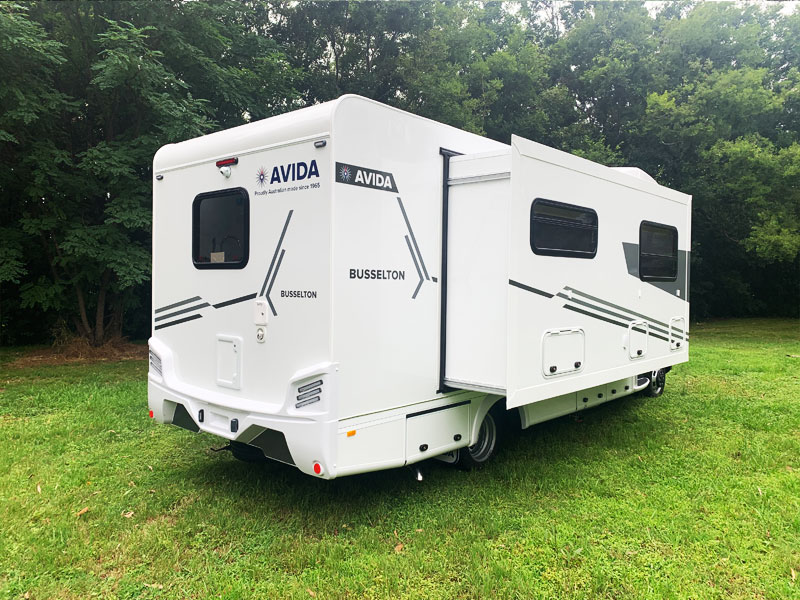

Slide out room* – For extra living space
Stereo speakers in the rear
Storage – Ample throughout
Table in lounge area – Removable
Tank & battery monitor system
Toilet roll holder
Toilet with cassette

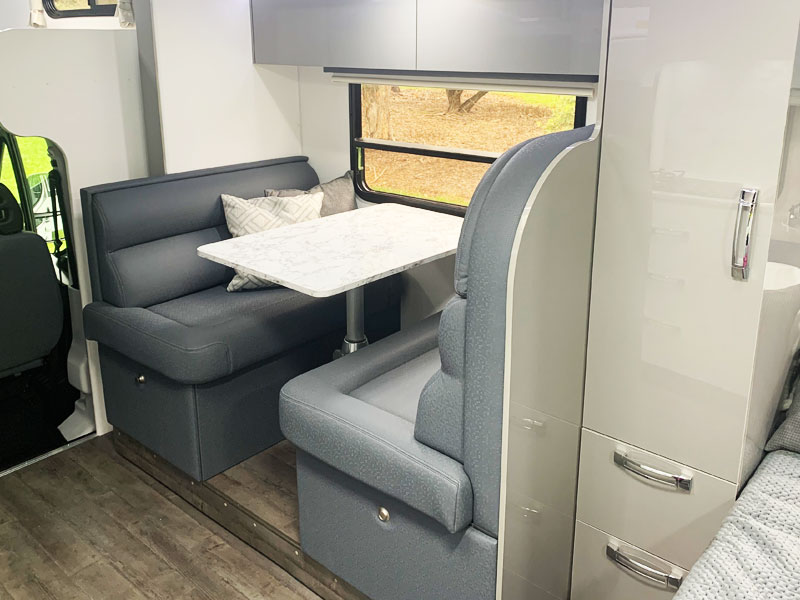

Tri fold table at dinette O
Upholstery – Fabric
Upholstery – Ultra Leather O
Upholstery – Leather O
Vanity basin
Washing machine O
Waste pipes – Large to allow for better flow and minimise blocking – 40mm in diameter
Windows – Louvre windows with fly screens
Windshield privacy
Aerodynamic moulded front
Awning – Light(s)
Awning Roll Out
BBQ fitting O
Chassis – Bull bar O

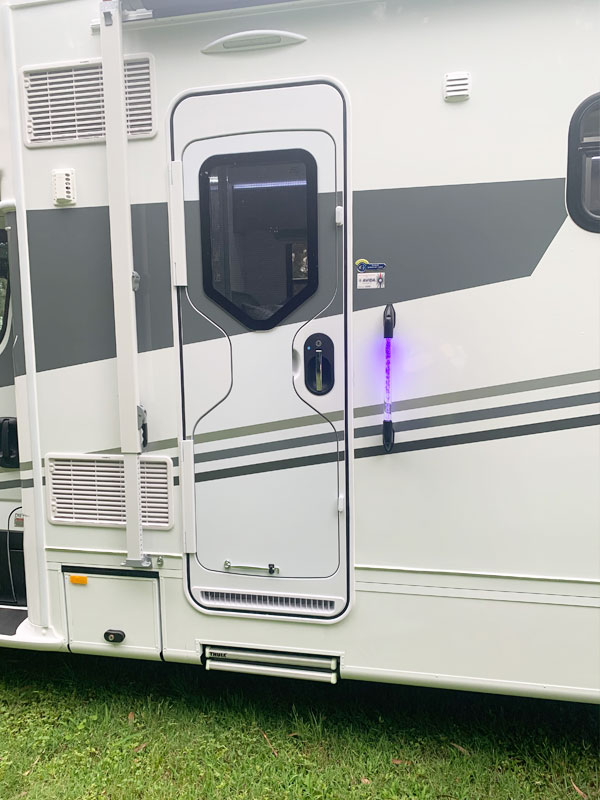

Door – Entry door with four point lock & security screen
Entry step – Electric
External speakers O
External surface mounted table O
LED clearance lights
LED light bar on nudge bar O
LP gas bottle 2x4kg
Moulded wheel arch flares
Mud flaps on rear wheels
Power point – external 240V O
Shower – External with hot and cold water O
Solar panel wiring provisions
Stabilisers – Hydraulic stabilisers O
Storage bins – With lights
Stylish moulded rear wall
Tow bar & wiring O

ABS – Antilock braking system

Driver and passenger airbags

Entry door grab handle & light

ESP – Electronic stability program control

Fire extinguisher(s)

LP gas leak detector

Reverse camera

Smoke detector

Air conditioning
Arm rest/s O
Bucket seats – Colour co-ordinated
Cruise control
Electric driver & passenger windows
Electric mirrors with demist function
Height & reach adjustable steering column
Power steering
Remote control central locking with engine immobiliser
Wheel dress rims O
Bench tops – Selection available to choose from
Cabinetry – Choice of many colour collections
Exclusive decals – Choice of many colour collections
Seating with choice of fabric collections
Splashback – Choice of several styles & colours
Walls – External wall colours available

The information shown in the table is explained as follows:

= Standard feature
= Standard feature on select models
= Feature not available
O = Optional feature
O* = Optional feature on select models

Benchtops

Concrete

Dark Marble

Faux Denim

Marble

Pebble

Cabinetry

Black Matte

Brilliant Pearl

Graphite Velvet

Grey Matte

Silver Sparkle

Splashbacks

Dark Marble

Marble

Dove

Latte

Oak

Upholstery

Black Diamond (Fabric)

Charcoal Mist (Leather)

Dark Silhouette (Faux Leather)

Imperial Marble (Fabric)

Intense Cocao (Faux Leather)

Refined Stone (Ultra Leather)

Sandy Beach (Fabric)

Stony Illusion (Leather)

Stormy Bay (Ultra Leather)

Wild Coconut (Fabric)

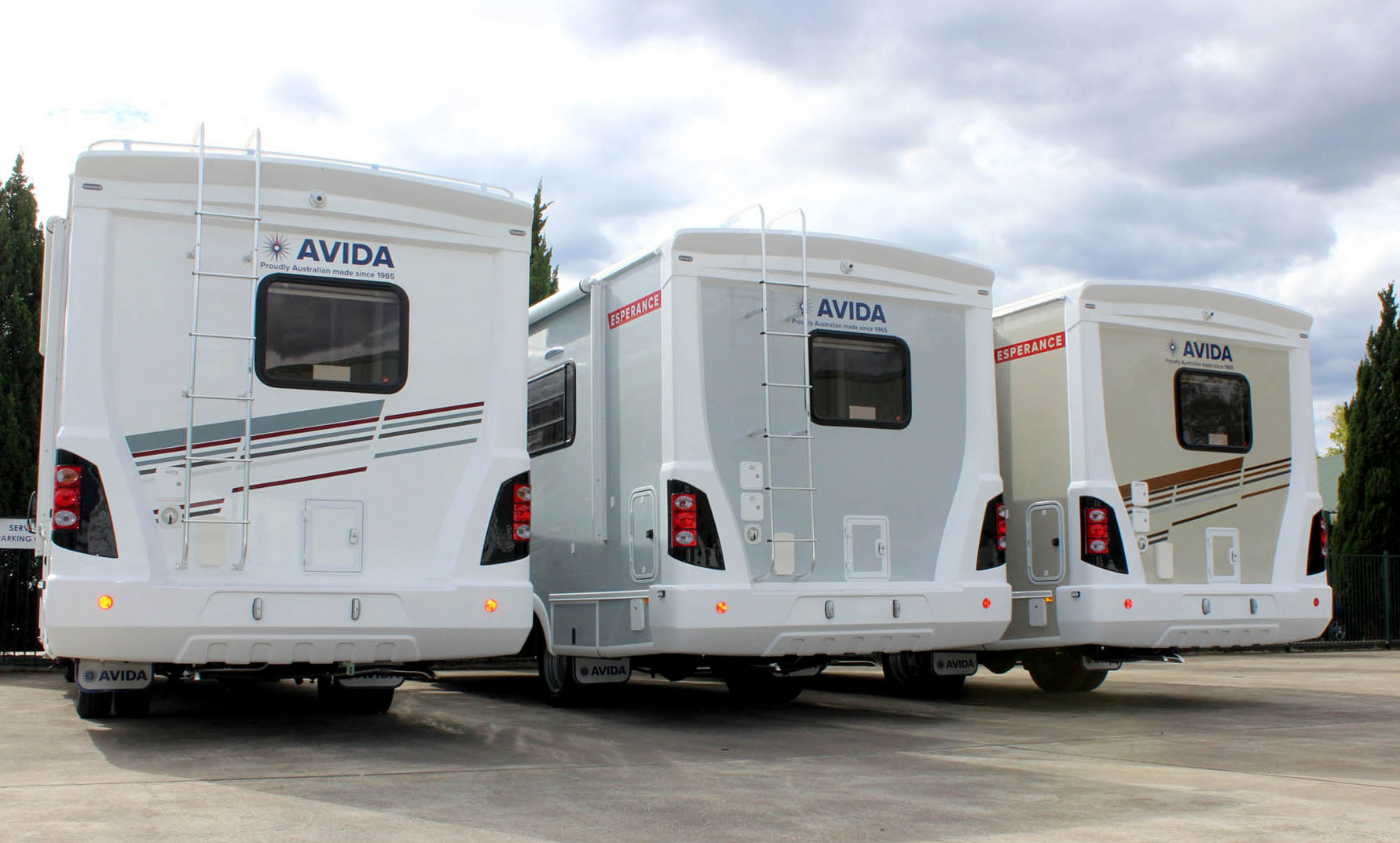

External

Arctic White

Smoky Grey

Sample Photo
